Sneak Peek: Conductor

12/14/2010

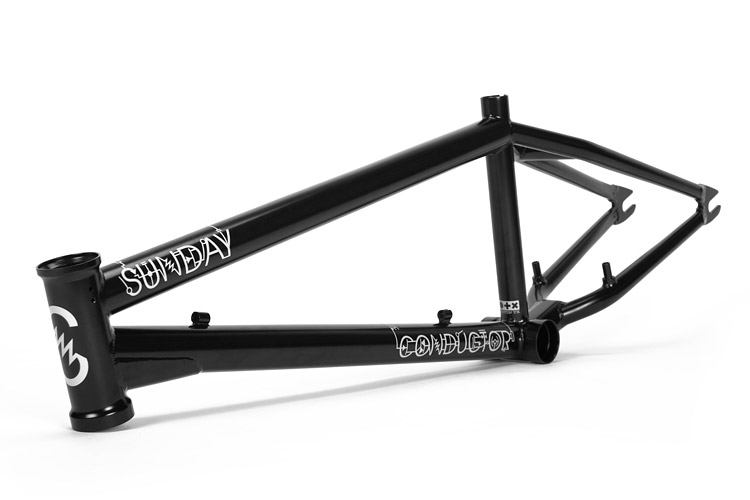

Introducing the new Sunday Conductor frame.  It’s look is simple and classic with geometry specifically suited for stability at higher speeds.  The stability comes from the longer top tube lengths combined with it’s 14″-14.75″ chainstay length.  It has a normal, not so twitchy headtube angle that remains responsive.  The chainstay brake mounts continue the classic look.  It’s drivetrain fits up to a 36 tooth sprocket and is specifically designed for larger gear ratios.  Sunday frames have always had a stiffer feel due to the Director style wishbone and the non-sandwiched seat tube junction which improves lateral stiffness. While the gusset and the minimal spacing between the toptube and downtube at the headtube improves vertical stiffness. Whether it’s a set of doubles at the trails or a bowl corner at a concrete skatepark, the Conductor is ready for it all.  Look for it to be available in early 2011!


TT: 21″ & 21.25″
HT: 74.5
ST: 71
CS: 14″-14.75″
BB Height: 11.8″
Color: Black Magic
Features: 41 Thermal Heat-Treating, chainstay brake mounts, 5mm dropouts, traditional tubing shapes and a drivetrain designed for larger gearing.

  • http://Website sam

    this looks damn strong!

  • http://Website Ian

    What is the standover height?

    • http://Website BobbyP

      The stand over height is measured from the center of the bottom bracket to the center of the top tube on our frames. By that measuring standard the Conductor is an 8.5″ stand over height. That is 1/4″ higher than the Forecaster and the same as the Wave 3 and Funday 2 frames.

  • http://Website mike

    looks fuckin sick .,.. wish it had the 8mm dropouts tho :(

  • http://Website Brayden

    What type of headset,campy or intergrated? Please reply…

    • Bobbyp

      It is a 45/45 Campy spec headset.

  • http://Website iAN rose

    Bad bad bad call on welded seat stay mounts. Their are very few companies that make big drivers. I could say 95% of bmx hubs sold today are only in 9T.

    • http://vinylbmx.com Tom Arkus

      People have a lot of mixed feelings about chain stay brakes. I think now days people do run a 9th with a heavier gear up front. So it all works out. Not to mention you can put in a massive tire in the rear end. I personally run 28-9 ratio. and it works well with the frame.

    • http://Website dave

      i personally run 31/10 and not one of the 20+ local trail shredders i ride with runs smaller than 29. i guess we must make up the 5%

  • http://Website steve schwartz

    please lower the bottom bracket. Not all the way to 11.5 like other “trail” frames, but something in between. to me this would make it a sweet ride. 11.8 is high already, and when combined with larger tires, It really feels too high.

  • http://Website iAN rose

    well, 28-9 is defiantly do-able especial for dirt, and that is this frames intended use. Are they lo-profile mounts like Fly?

    11.8 bb with the long chain-stay zero each other out it’d be a fun ride. Comparable to the Fit lurch or S&M stricker and they’re fun frames.

  • Pingback: A Very Christmas Bike Check « Sunday Bikes

  • http://Website Alex

    if i can run 28/9 and brakes at the same time, i will be 1 happy camper when this frame comes out

  • Pingback: Chris Hilbrich Conductor Bike check « Sunday Bikes

  • http://Website BRETT

    Why are you running brakemounts on the chain stay? seems like a bad idea to me, really limits your gearing

  • http://Website Saaaaaaaaaaaaaamuel

    damn, soooooooooooooooo hype

  • Pingback: Tom Arkus: AZ Vacation « Sunday Bikes

  • Pingback: Tom Arkus Conductor bike! « Sunday Bikes

  • http://Website hrt

    Agree the 11.8 bb is too high. But for the sizes this frame comes in 21 and 21.25 it should be fine. Why did you drop 20.75? And why not integrated chain tensioners ?

  • http://Website Paul Lehr

    i was gunna sway from sunday and get T-1 barcode, but this might be the frame i’ll be getting next. geometry is spot on.. well bb should be 11.75. but i can deal with .05 difference. 21.25 and a long back end? i’m stoked.

  • http://Website David

    Tom Arkus said “you can put in a massive tire in the rear end”. How massive? Does it have clearance for a 2.3 tire? Also, what is the weight?

  • Pingback: Conductor frame now available! « Sunday Bikes

  • http://Website fred

    i was going for a t-1 barcode, but the 14″ rear end swayed it. just ordered a conductor. simple solid and well made. what more could you want in a frame. not worried about the chainstays as i run 31t, 10t gearing
