Introducing the Soundwave frame

8/14/2012

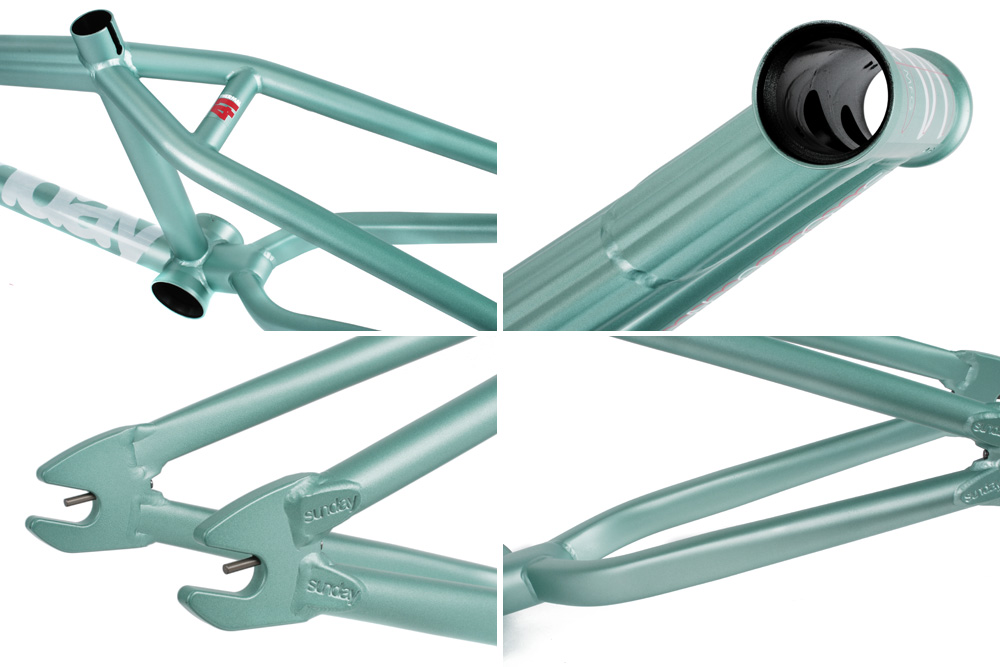

The Soundwave is the latest in the Wave series of frames. This is the most modern, highest quality frame we have offered to date. The geometry has been updated by changing the HT to 75˚, lowered the BB height to 11.5” and shortened the CS length to 13.5” – 13.75”. We have also given the chain stays an updated “boxed” tube shape. This enables the frame to have a shorter rear end as well as provide clearance for larger sized rear tires. Now you have the modern geometry plus all the aftermarket frame features that makes Sunday frames stand out from the crowd. Hollow dropouts, integrated chain tensioners, Wave down tube and top tube, Cable Channel, new screw-in cable guide,  angled removable brake mounts, Director style wishbone, post-weld machining of the BB & HT and full 41 Thermal heat-treating backed by a lifetime warranty all come standard on the Soundwave.

Available in 20.75”, 21” and 21.25” top tube sizes along with Black Magic and Garrett Reeves signature Ice Green colors.

Soundwave Frame Geometry

TT: 20.75″, 21″ & 21.25″
HT: 75˚
ST: 71˚
CS: 13.5 – 13.75″
BB: 11.5″
SO: 8.5″
WT: 4.87 lbs
Colors: Garrett Reeves Ice Green & Black Magic
