About

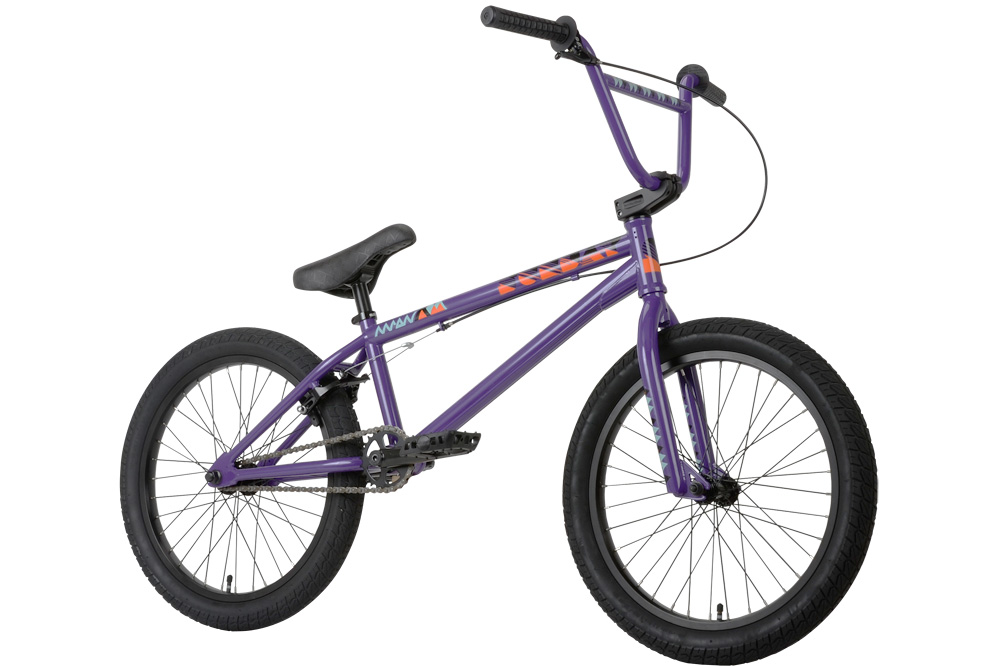

The 2013 Aaron Ross AM comes with all of the great features that have made it an easy “go-to” choice for shops and riders around the world. Grape is back on this year’s AM, and you’ll find our proprietary dent-resistant Wave down tube as well as Odyssey Twisted PC pedals and Aaron Ross 2 grips, Aaron Principal pivotal seat and the new Odyssey Springfield brake and lever. We’ve also included the Sunday Freeze top-load stem and Odyssey’s Quik-Slic Kable®, making brake assembly a breeze. The AM’s frame uses proven geometry for 2013 and the fork includes a custom aluminum pre-load bolt. As you’ve come to expect, quality and durability are emphasized throughout.
Improvements over the Primer
- Odyssey Quik Slic
- Chromoly Wave DT, HT, Dropouts
Specs
- FRAME: Chromoly HT, Wave DT & Dropouts
- GEOMETRY: 20.5″ TT, 75° HT, 71° ST, 11.5″ BB, 13.25″ CS

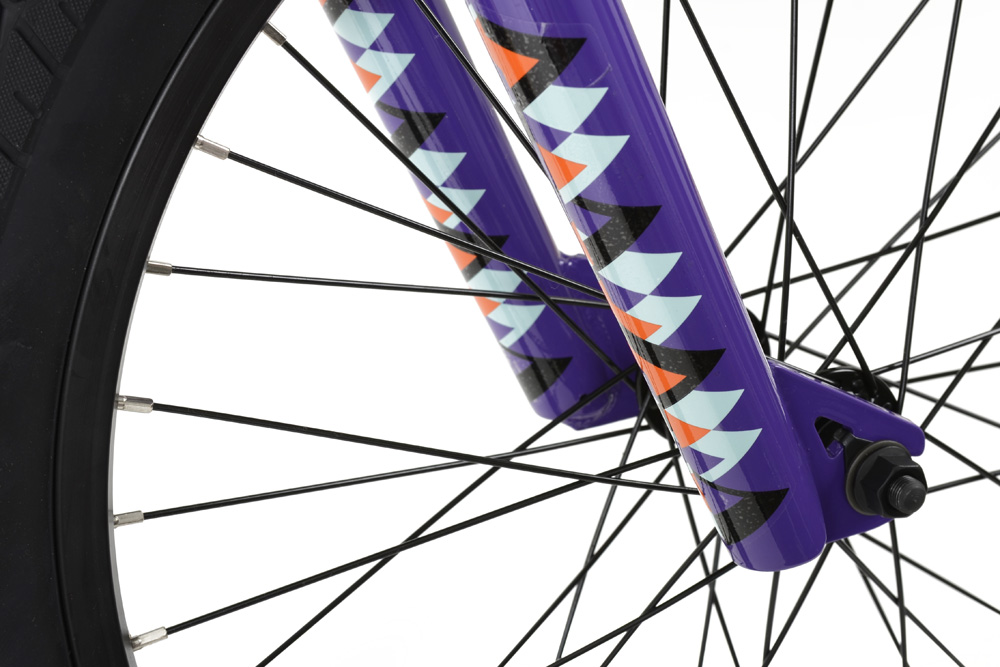

- FORK: Chromoly steerer tube w/ welded pre-load thread insert

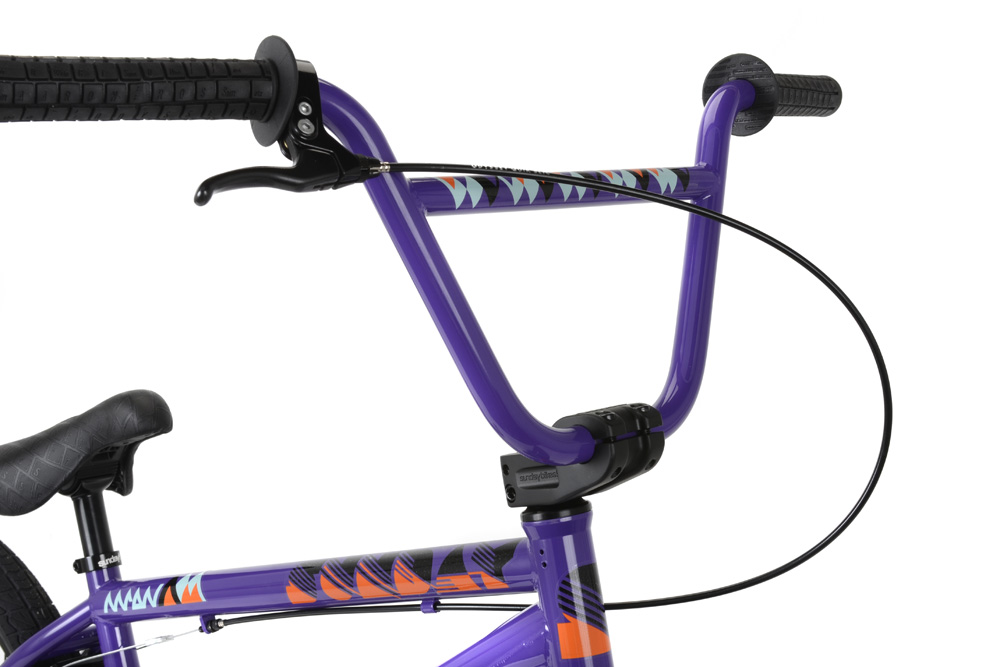

- HANDLEBAR: Triumph XL replica, Hi-Ten steel, 8.5″ H, 28″ W, 12° backsweep, 1° upsweep

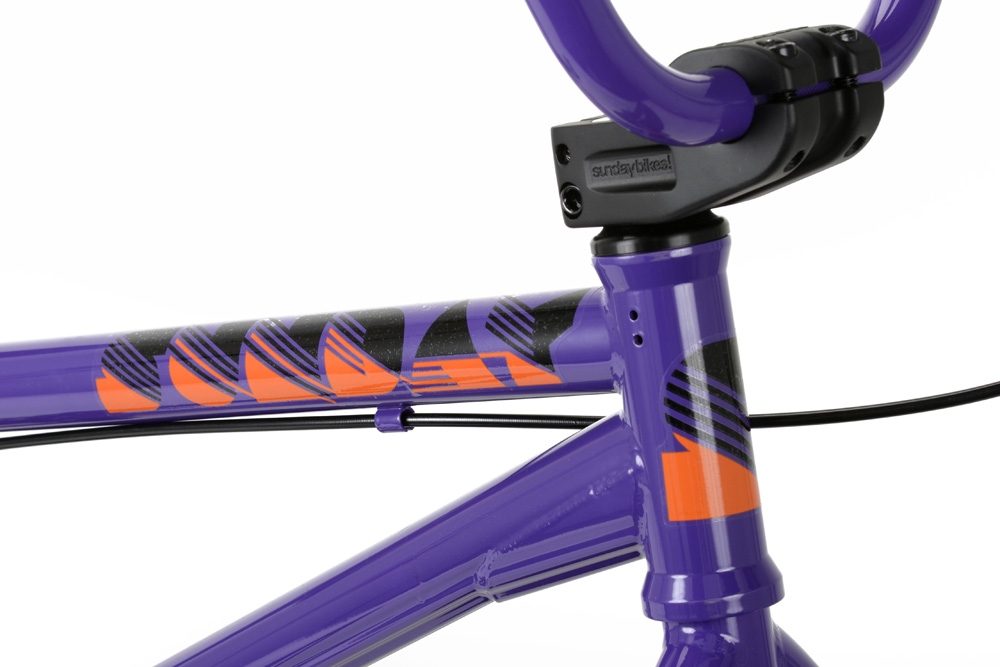

- STEM: Sunday Freeze Top-Load
- HEADSET: Integrated, 1 1/8″

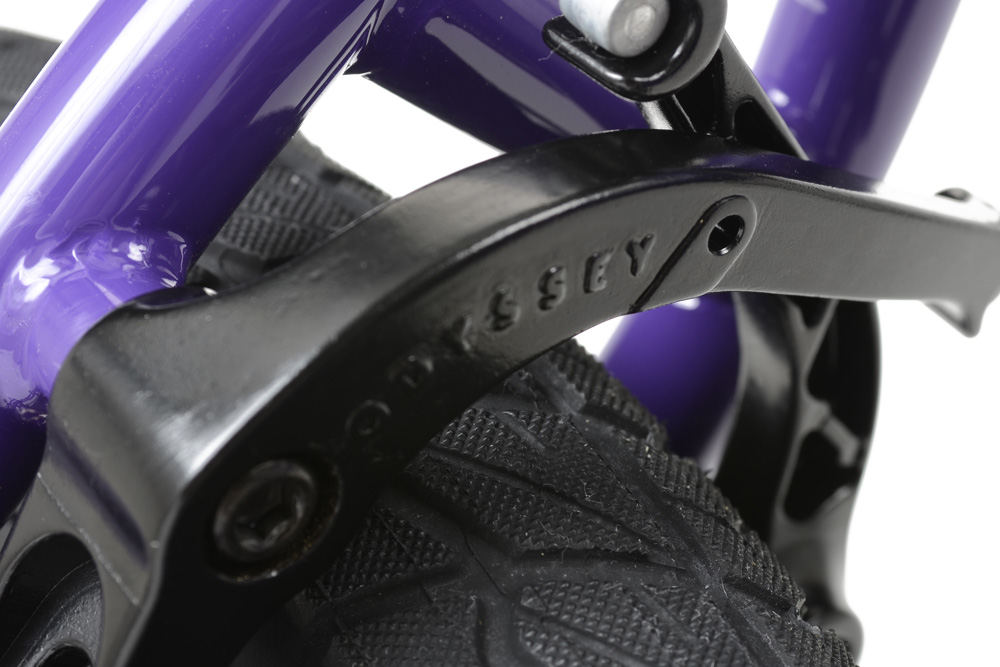

- BRAKE: Odyssey Springfield
- BRAKE LEVER: Odyssey Springfield

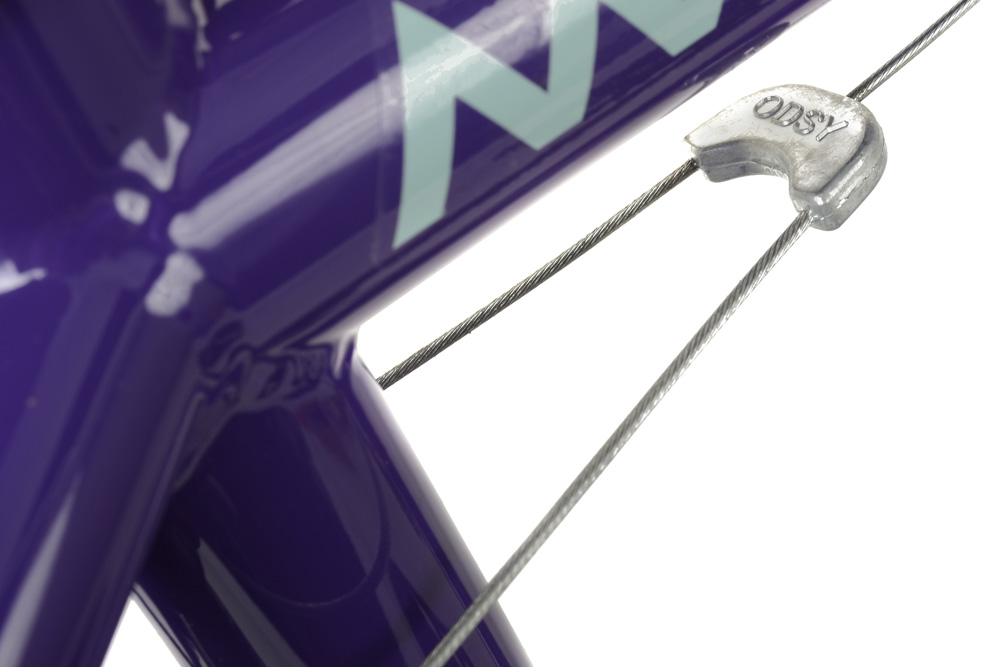

- BRAKE CABLE: Odyssey Quik Slic

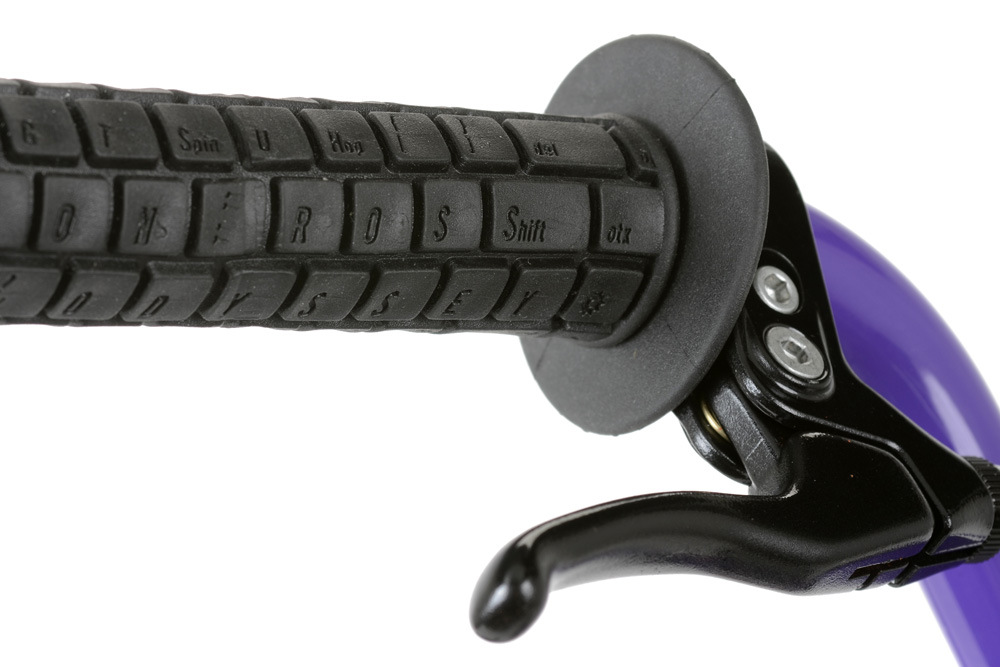

- GRIPS: Odyssey Aaron Ross 2

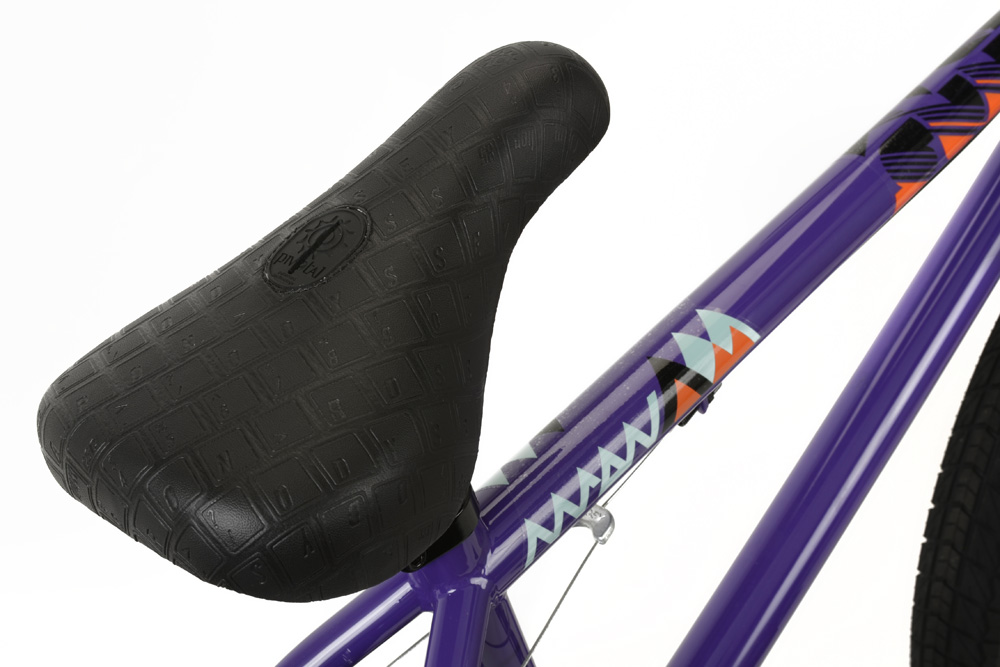

- SEAT: Odyssey Aaron Ross Principal
- SEAT POST: Pivotal

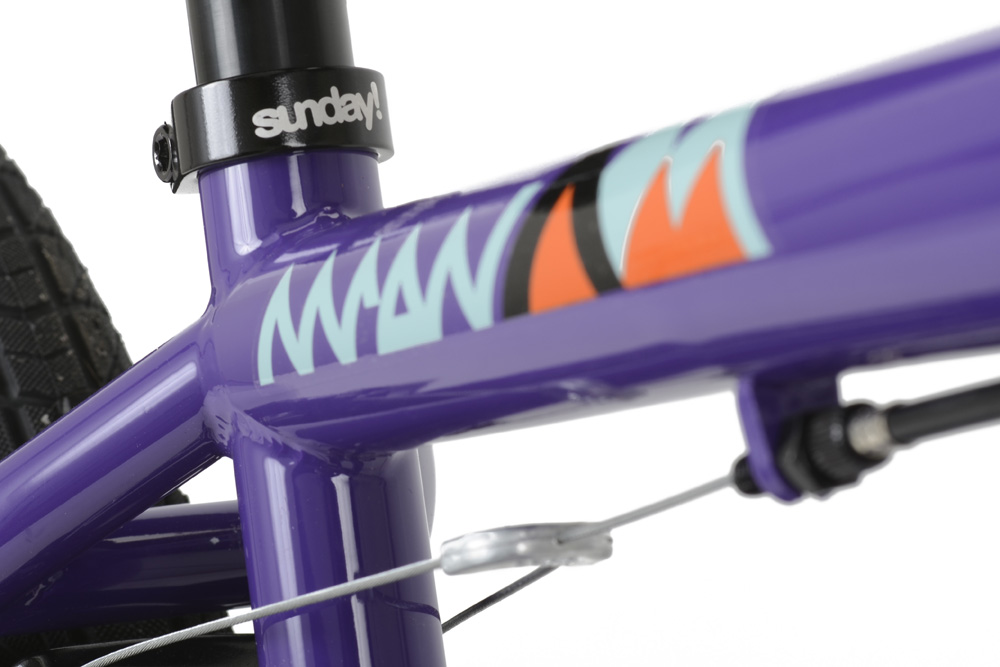

- SEAT CLAMP: Sunday
- SPROCKET: Sunday, Steel, 25-T
- CRANKS: 3-Piece Tubular Chromoly, 175mm
- BOTTOM BRACKET: 19mm Sealed Mid

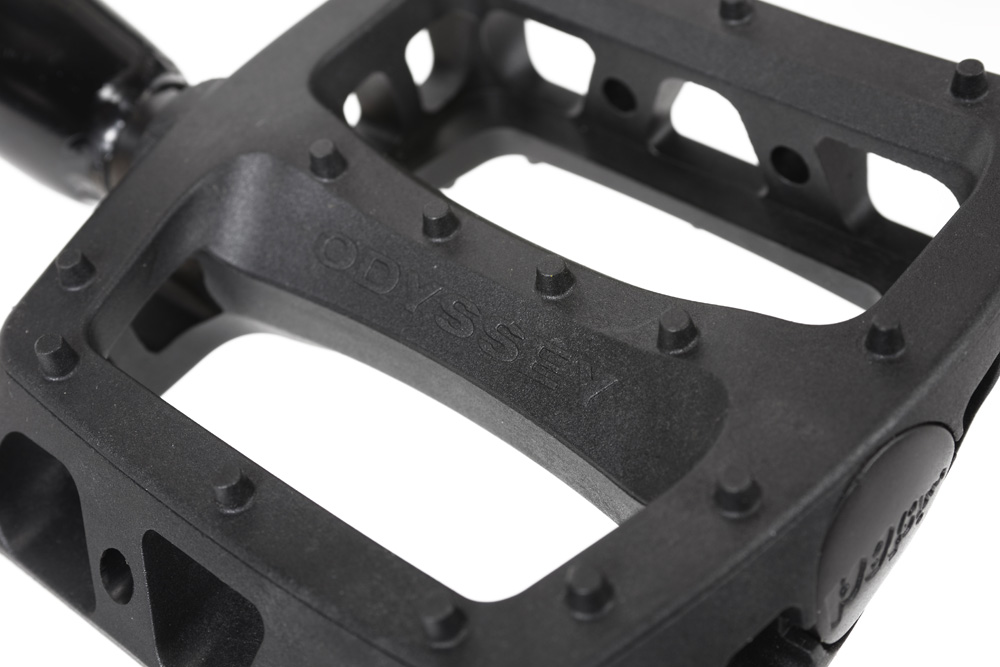

- PEDALS: Odyssey Twisted PC
- RIMS: Single Wall, 36-H
- FRONT HUB: Looseball 3/8″ axle, 36-H, Low Flange
- REAR HUB: Sealed Cassette, 14mm, 36-H, 9-T
- TIRES: Duro 2.25″ Front and 2.1″ Rear
- CHAIN: KMC Z410H
- WEIGHT: 26.4 lbs
