About

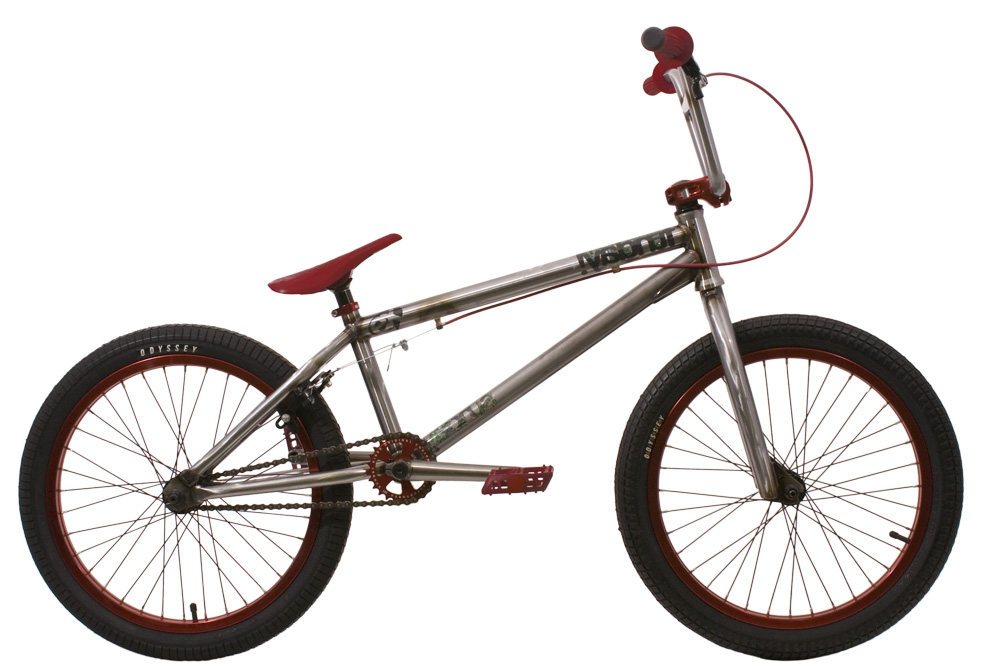

The Funday EX is the middle ground of the Sunday complete bike lineup. The EX is a contender itself! An even more amazing parts package that includes chromoly forks with a 1-piece steerer tube and Triumph style chromoly bars. Then add in a bunch of Odyssey parts, including their new Quadrant rim, and you have a really amazing bike.

Colors

  • Fluorescent Yellow/Black
  • Raw / Red

Specs

  • FRAME: 20.75″ TT, 74.5° HT, 71° ST, 13.25″ CS, 11.5″ BB Height, 8.5″ Standover, Tri-Moly (H/T,T/T,S/T,D/T), chromoly Wave D/T, mid BB and drop out, integrated H/T
  • FORK: Full chromoly w/1pc CNC steerer tube
  • HANDLEBAR: Full chromoly Triumph style bar (28″ wide, 8″ rise, 12 deg. backsweep, 1 deg. upsweep)
  • STEM: Sunday Front Load
  • HEADSET: Integrated 1-1/8″
  • SPACER: 5mm (1pc)
  • BRAKE LEVER: RX-402HD
  • BRAKE: RX-933D
  • BRAKE CABLE: Odyssey Linear Slic Kable
  • GRIPS: Odyssey Aaron Ross Grips
  • SEAT: Odyssey Plastic Senior 2, pivotal
  • SEAT POST: Pivotal
  • SEAT CLAMP: Sunday
  • SPROCKET: Sunday 25T T-6061 CNC, adaptor included
  • CRANKS: Chromoly 3pc tubular, 175mm
  • BB PARTS: Sealed mid w/19mm splindle
  • PEDALS: Odyssey Twisted PC, 9/16″
  • RIMS: Odyssey Quadrant
  • FRONT HUB: Sealed bearing, 3/8″, 36h
  • REAR HUB: Sealed bearing cassette, 14mm, 9t, 36h
  • SPOKES: Steel (F/189mm and R/186mm)
  • FRONT TIRE: Odyssey Aitken, 2.25″
  • REAR TIRE: Odyssey Path, 2.10″
  • CHAIN: KMC Z510H 1/2″ x 1/8″
  • WEIGHT: 25.61lbs
