About

The geometry that shook up the cruiser world is now offered as a complete bike. The Model C utilizes a full chromoly frame, fork and handlebar. So, you get a durable bike with amazing geometry, but now you get to experience the Model C at a great price!

Colors

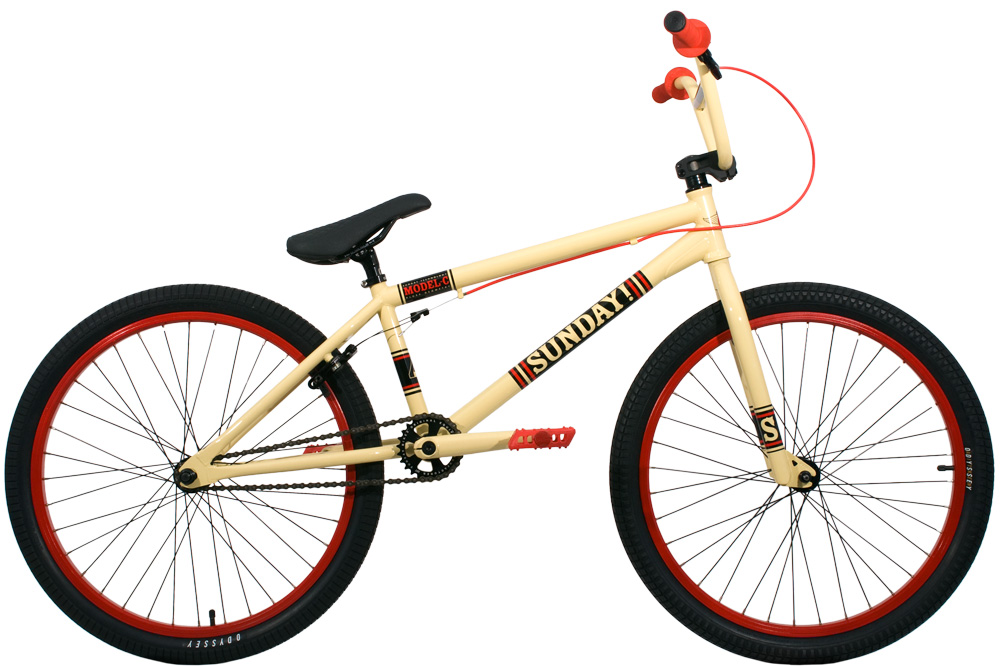

  • Vanilla / Red

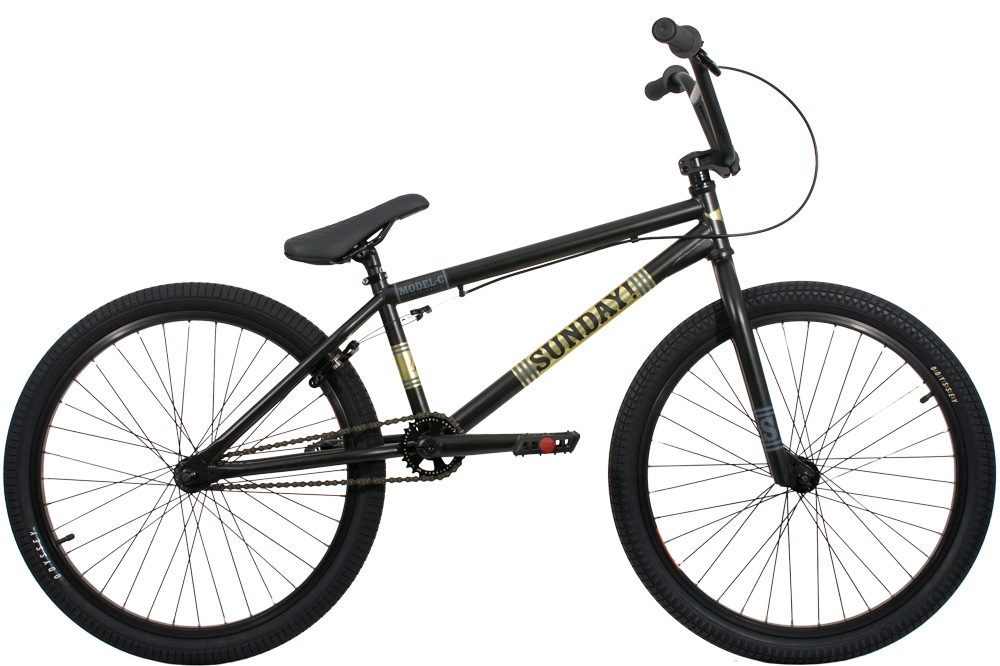

  • Flat Black

Specs

  • FRAME: 21.25″ TT, 74.5° HT, 71° ST, 14.75″ CS, 13.75″ BB, 9.8″ Standover, Full 4130 chromoly
  • FORK: Full chromoly, 1pc CNC steerer tube
  • HANDLEBAR: Full chromoly 24umph style bar (28″ wide, 8″ rise, 12 deg. backsweep, 1 deg. upsweep)
  • STEM: Sunday Front Load
  • HEADSET: Integrated 1-1/8″
  • SPACER: 5mm (1pc)
  • BRAKE LEVER: Odyssey Monolever, small
  • BRAKE: Odyssey Evo II
  • BRAKE CABLE: Odyssey Linear Slic Kable
  • GRIPS: Odyssey Team Grips w/plug
  • SEAT: Odyssey Aitken, pivotal
  • SEAT POST: Pivotal
  • SEAT CLAMP: Sunday
  • SPROCKET: Sunday 25T 6061 CNC, adaptor included
  • CRANKS: Chromoly 3pc tubular, 175mm
  • BB PARTS: Sealed mid w/19mm spindle
  • PEDALS: Odyssey Twisted PC, 9/16″
  • RIMS: Alex 24″ DM-24, double wall, pinned, 36h
  • FRONT HUB: Sealed bearing, 3/8″, 36h
  • REAR HUB: Odyssey V3 Cassette, 14mm, 36h, 10t
  • SPOKES: Steel (F/238mm and R/235mm)
  • FRONT TIRE: Odyssey Aitken, 2.25″
  • REAR TIRE: Odyssey Path, 2.10″
  • CHAIN: KMC Z510H 1/2″ x 1/8″
  • WEIGHT: 27.4lbs
