Jake Seeley Broadcaster Previous Model • View Current Bikes »

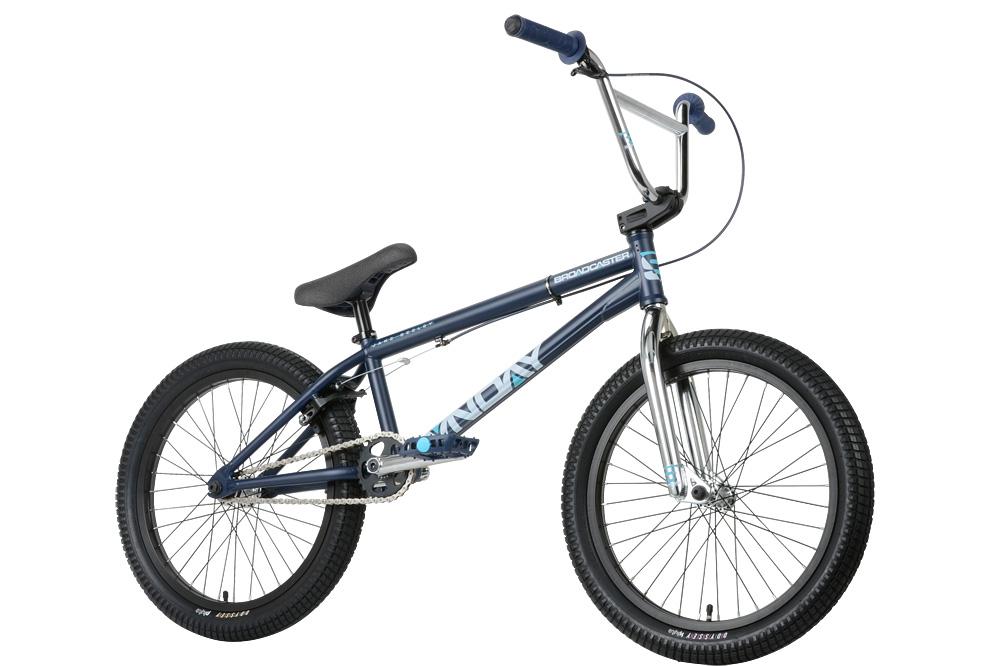

All new for 2013, the Jake Seeley Broadcaster complete bike combines Sunday’s newest aftermarket frame with high quality aftermarket Odyssey and Sunday parts throughout. The 75.5 degree head tube, 13″ slammed rear end and lower 11.5″ BB height make for a very responsive bike that’s ready for the most technical riding. Female axle front and rear hubs are laced to Odyssey Quadrant rims that are paired to 2.25″ front and rear Odyssey Mike Aitken tires. When we asked Jake Seeley what he thought about who the Broadcaster rides, Jake replied, “The feel couldn’t be better, man. I love it.” Rider tested. Rider approved.

Specifications

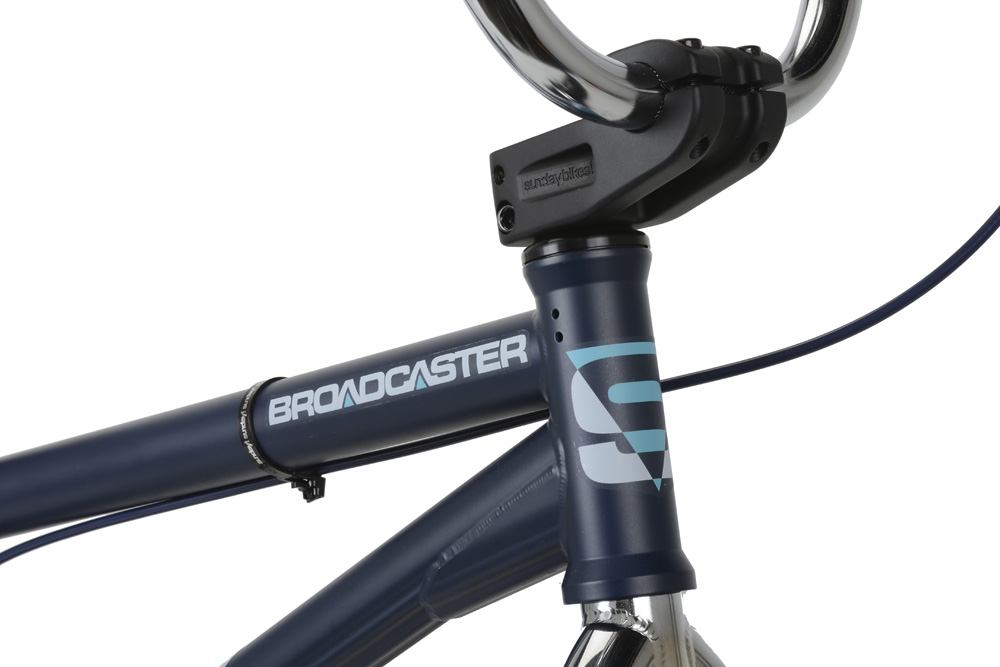

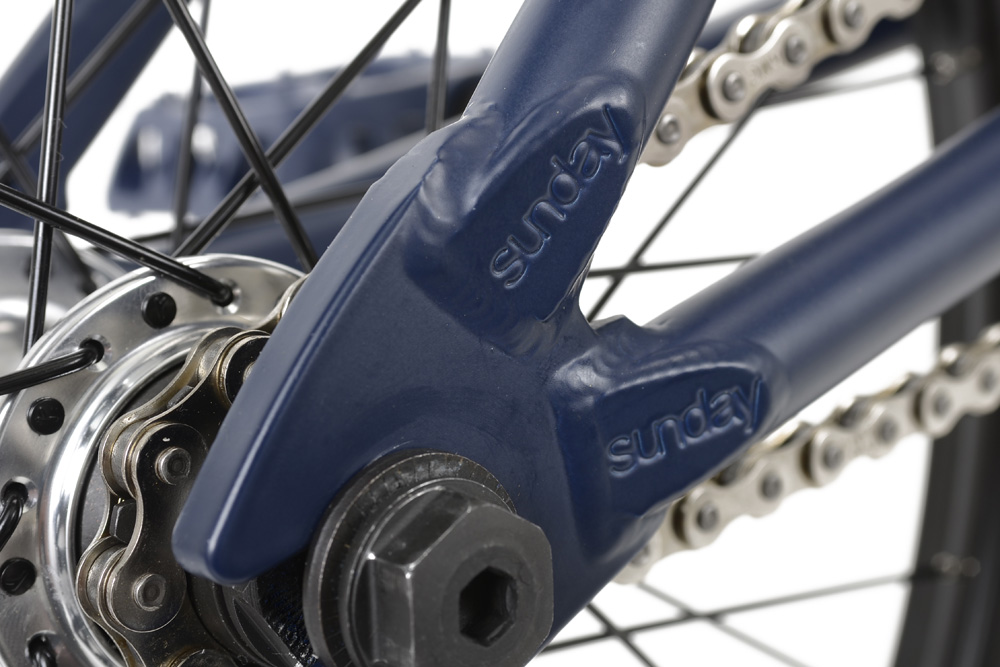

Frame: Full Chromoly aftermarket, hollow dropouts & removable brake hardware

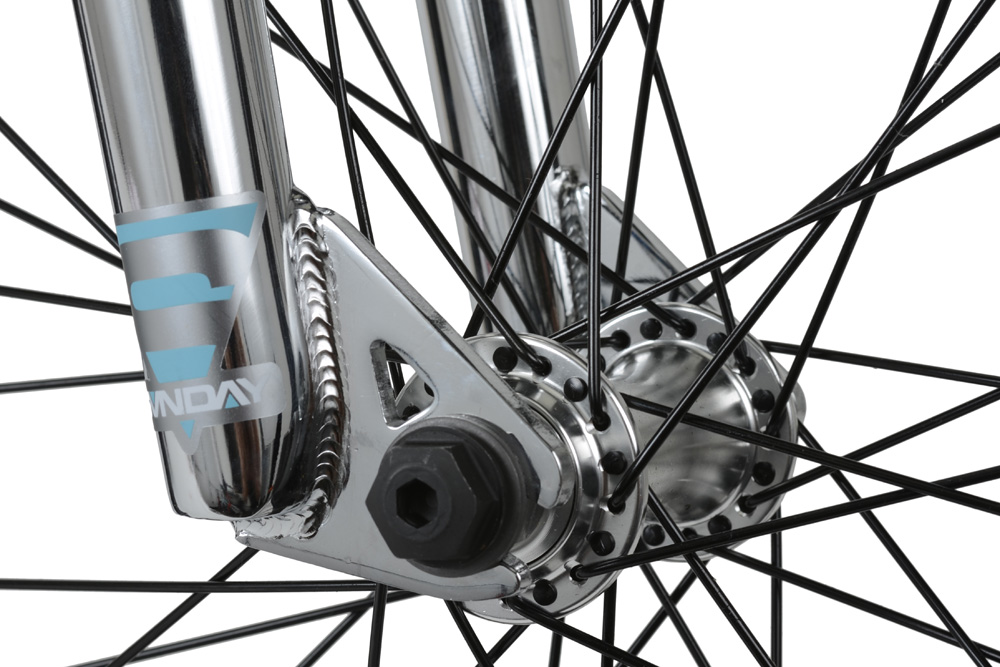

Fork: Full Chromoly, 1PC steerer tube w/ welded pre-load thread insert
Handlebar: Chromoly Triumph XL replica 8.5" H, 28" W, 12° backsweep, 1° upsweep

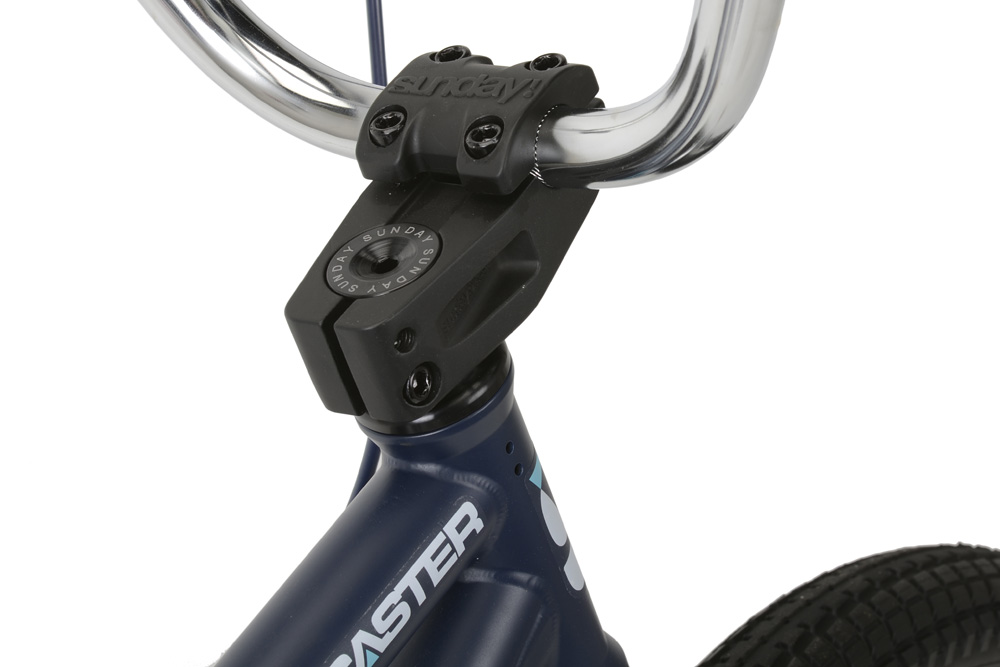

Stem: Sunday Freeze Topload
Headset: Integrated, 1 1/8"
Brake: Odyssey Springfield
Brake Lever: Odyssey Monolever medium
Brake Cable: Odyssey Linear Quik Slic medium

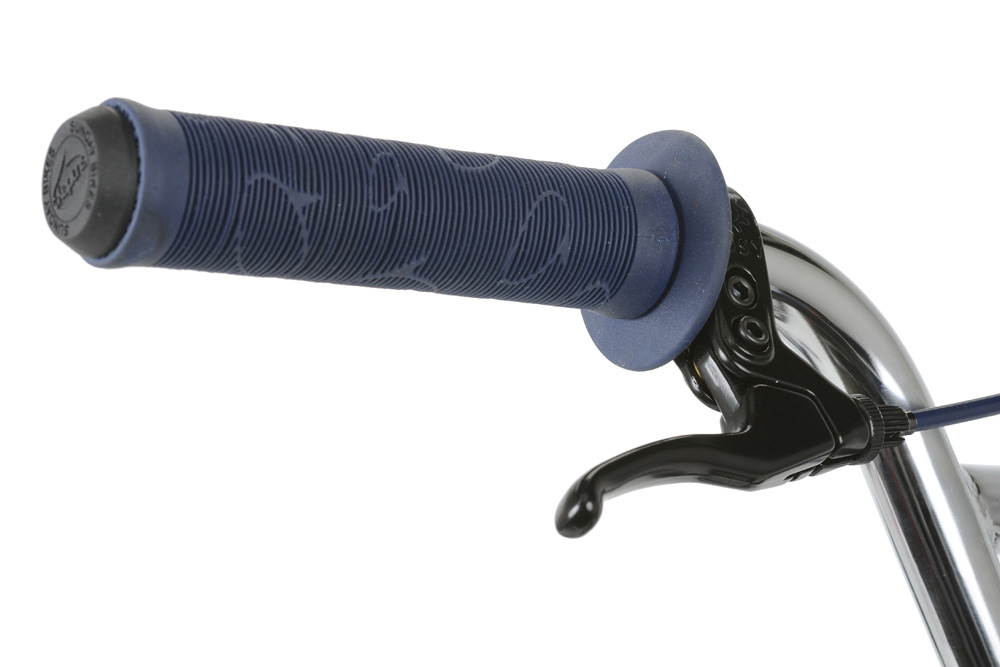

Grips: Sunday Yell

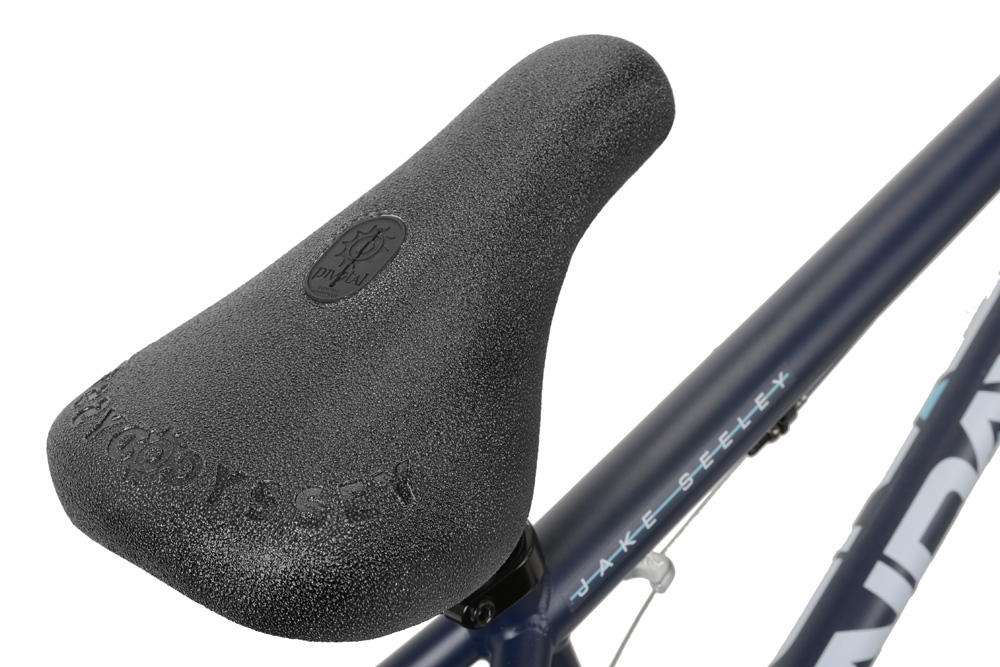

Seat: Odyssey Principal Gary Young
Seat Post: Pivotal
Seat Clamp: Sunday

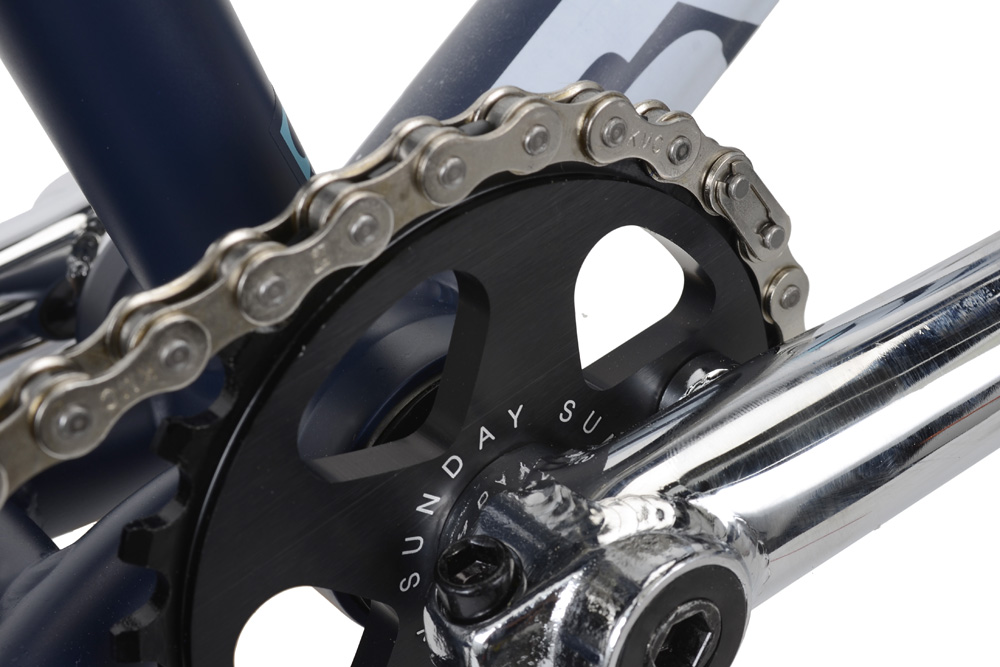

Sprocket: Sunday Sabretooth, 27-T, 6061-T6 Aluminum, CNC
Cranks: 3-Piece Tubular Chromoly, 175mm
Bottom Bracket: 19mm Sealed Mid

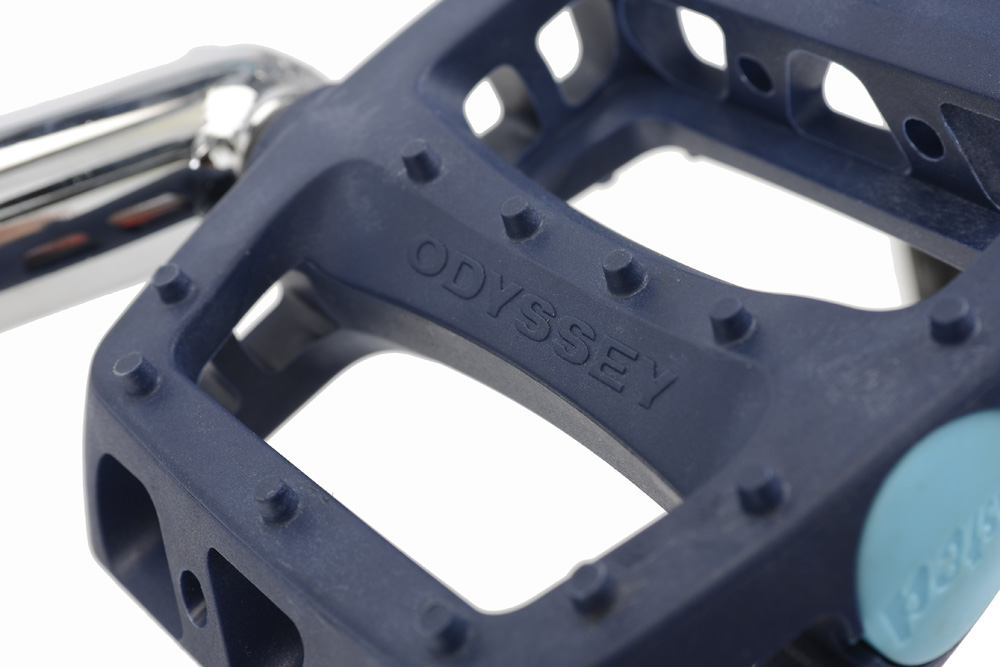

Pedals: Odyssey Twisted PC

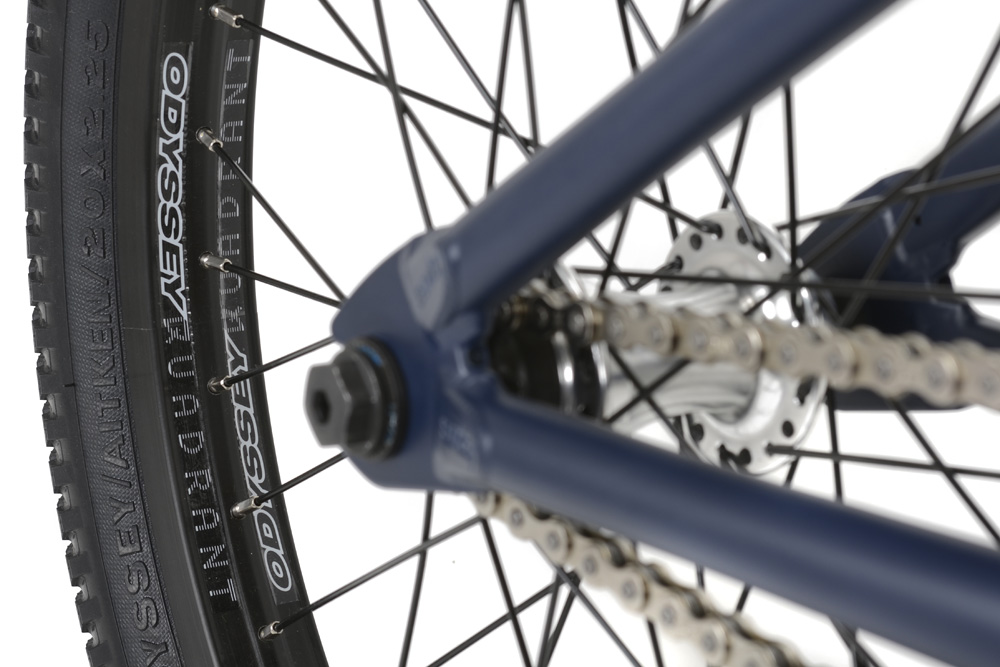

Rims: Odyssey Quadrant, 36-H
Front Hub: Sealed 3/8", 36-H, Low Flange with female axle
Rear Hub: Sealed Cassette, 14mm, 36-H, 9-T with female axle
Tires: Odyssey Aitken 20" x 2.25" front and rear
Chain: KMC Z410H
Weight: 25.4 lbs

*Specs subject to change without notice.

GEOMETRY

Top Tube Length: 20.75"
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Bottom Bracket Height: 11.5"
Chainstay Length: 13" - 13.25"
