About

The Scout is back for its second year running. With a great response on the bike from the trails community, we have decided to keep the bike in the lineup for 2012. Our goal with this bike was to give it some new wave flash while still maintaining that old school flavor. We also upgraded the frame spec and geometry a bit for the 2012 Scout. Now featuring a 21.25” TT, a 14” rear end, 11.625” BB height as well as a 30/10 gear ratio, this bike is ready for whatever you can throw at it.

Colors

  • Kelly Green/ Chrome/ Brown

Improvements over the AM

  • Geometry: 21.25" TT, 74.5 degree HT, 71 degree ST, 11.625" BB, 14" CS
  • Odyssey Convertible seat post
  • Sunday Word Bubble grips
  • Sealed 3/8" front hub
  • 30/10 gear ratio

Specs

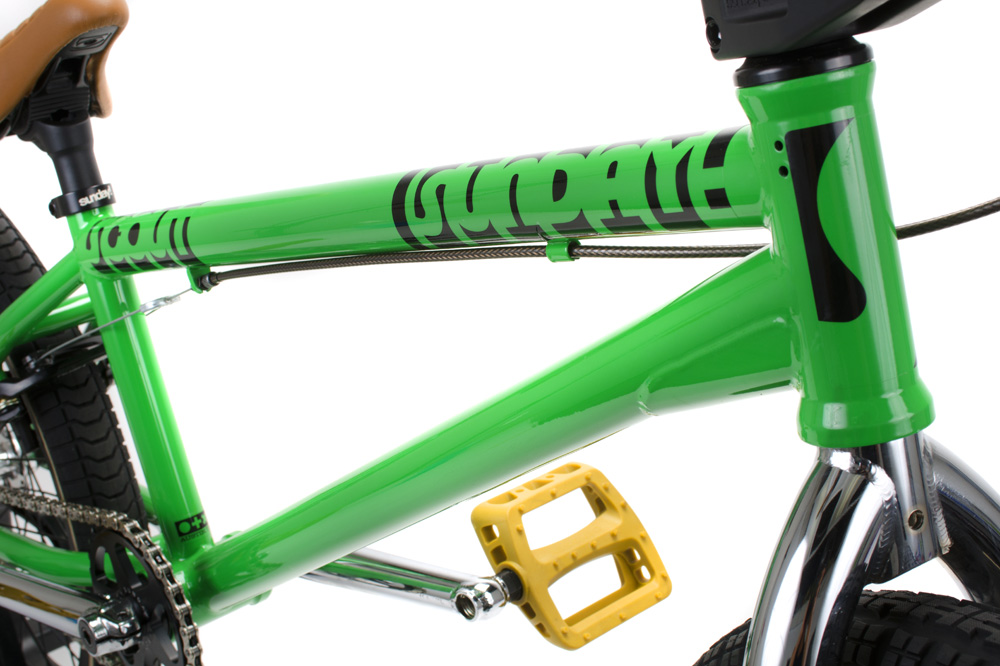

  • FRAME: Chromoly HT, TT, DT, Seatstays & Dropouts
  • GEOMETRY: 21.25″ TT, 74.5º HT, 71º ST, 11.625″ BB, 14″ CS
  • FORK: Full Chromoly w/1PC Steerer Tube & Welded Pre-load Thread Insert
  • HANDLEBAR: Full Chromoly Triumph XL Replica

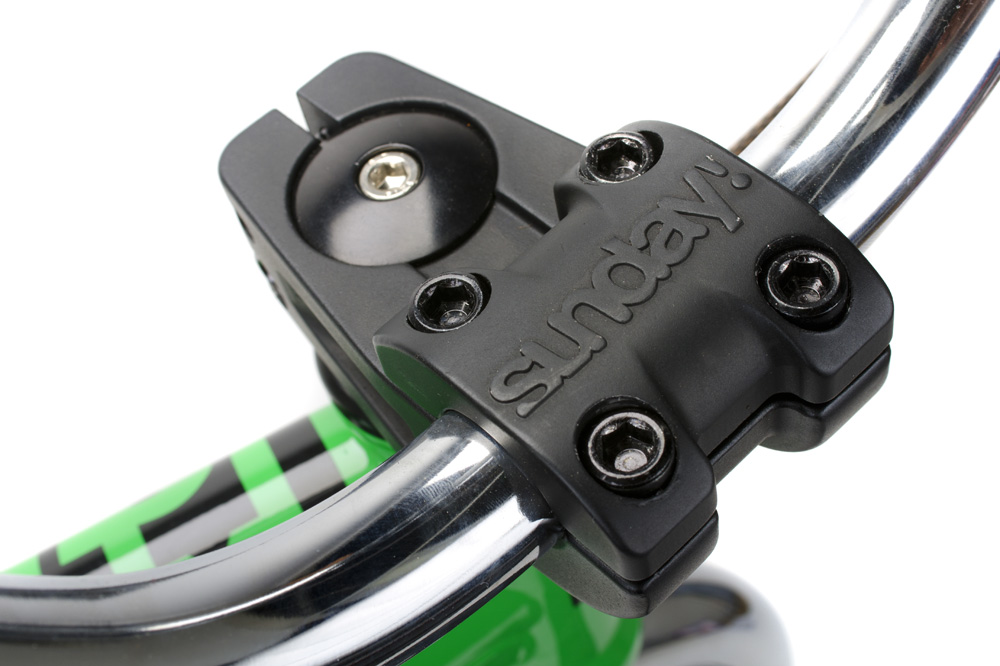

  • STEM: Sunday Freeze Top-Load
  • HEADSET: Integrated, 1 1/8″
  • BRAKE: Rush

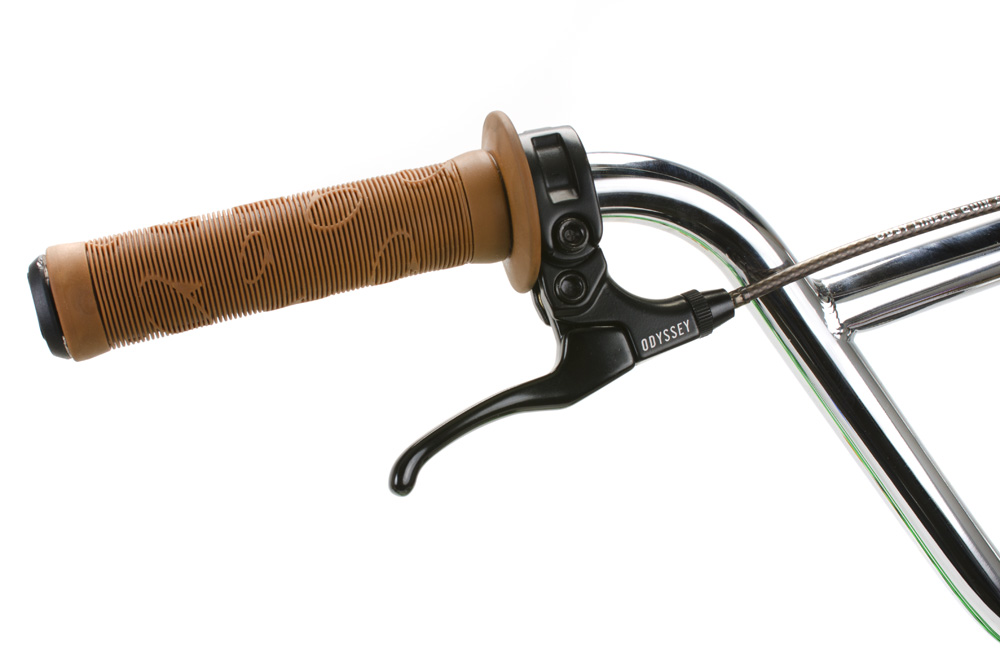

  • BRAKE LEVER: Odyssey Monolever, Medium
  • BRAKE CABLE: Odyssey Linear Quik Slic Medium
  • GRIPS: Sunday Word Bubble

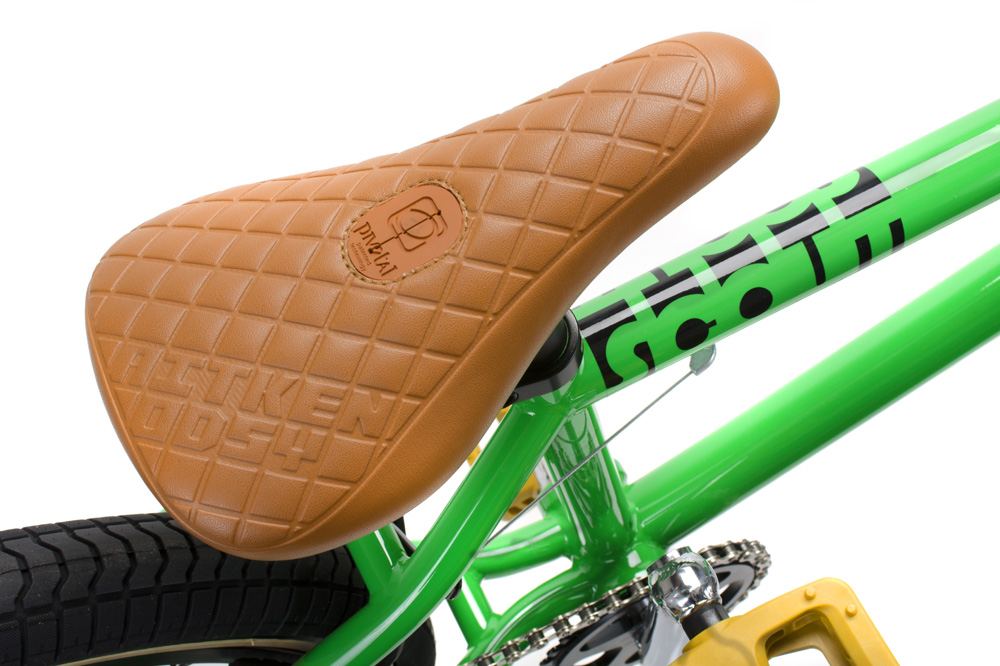

  • SEAT: Odyssey Aitken, Pivotal

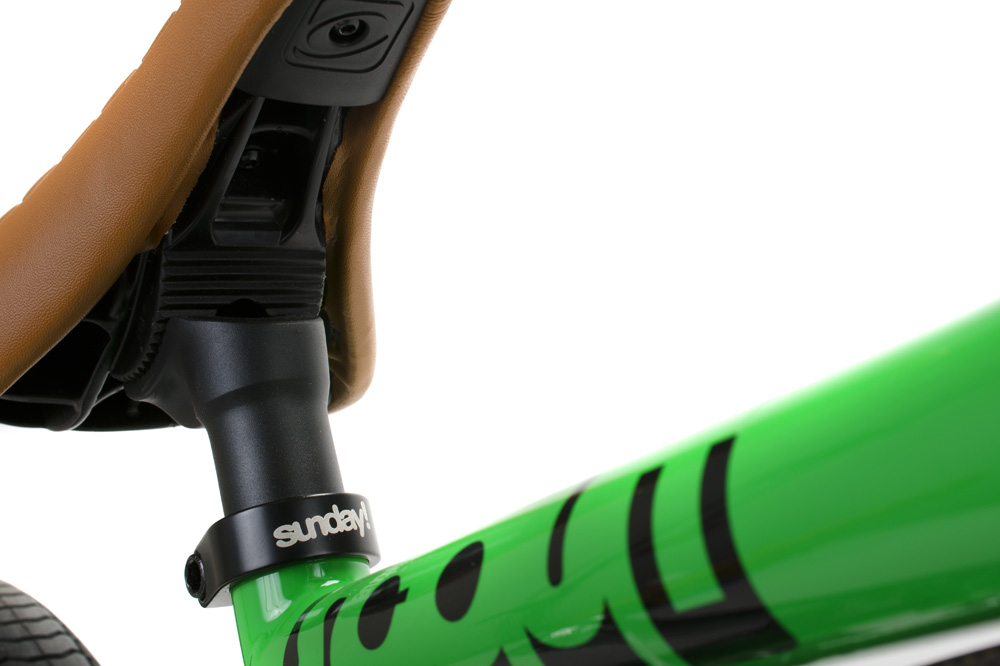

  • SEAT POST: Pivotal
  • SEAT CLAMP: Sunday

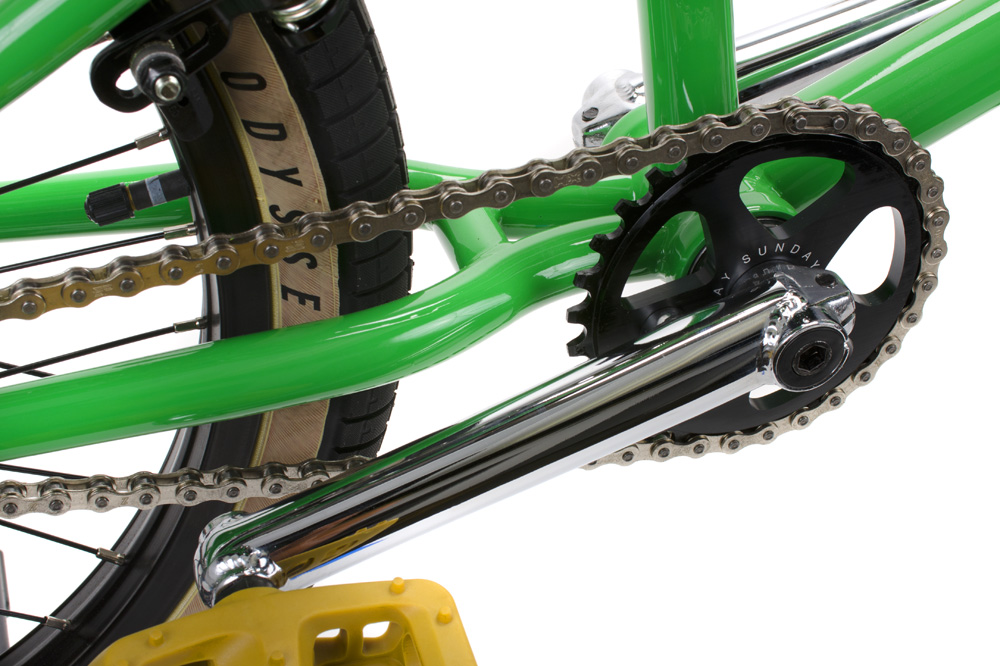

  • SPROCKET: Sunday Sabretooth, 6061-T6 Aluminum, 30-T
  • CRANKS: 3-Piece Tubular Chromoly, 175mm
  • BOTTOM BRACKET: Sealed Mid, 19mm
  • PEDALS: Odyssey Twisted PC

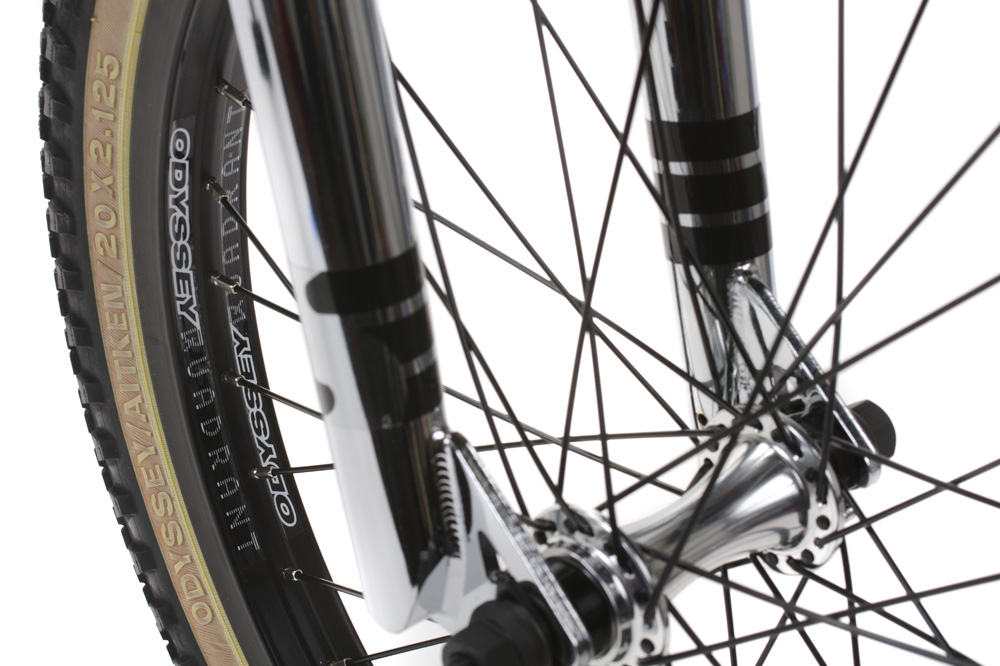

  • RIMS: Odyssey Quadrant, 36h
  • FRONT HUB: Sealed, 3/8″, 36h
  • REAR HUB: Sealed Cassette, 14mm, 36h, 9-T

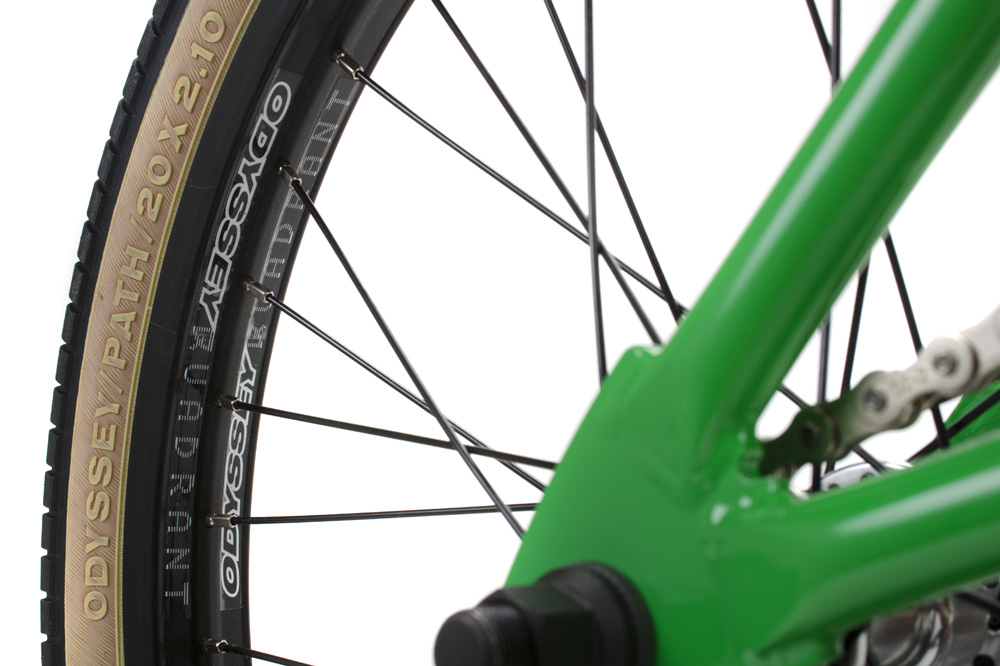

  • TIRES: Odyssey, 2.125″ Aitken Knobby Front & 2.1″ Path Rear
  • CHAIN: KMC Z510HX
  • WEIGHT: 26.2 lbs
  • MSRP: $609.99 (USA only)
