About

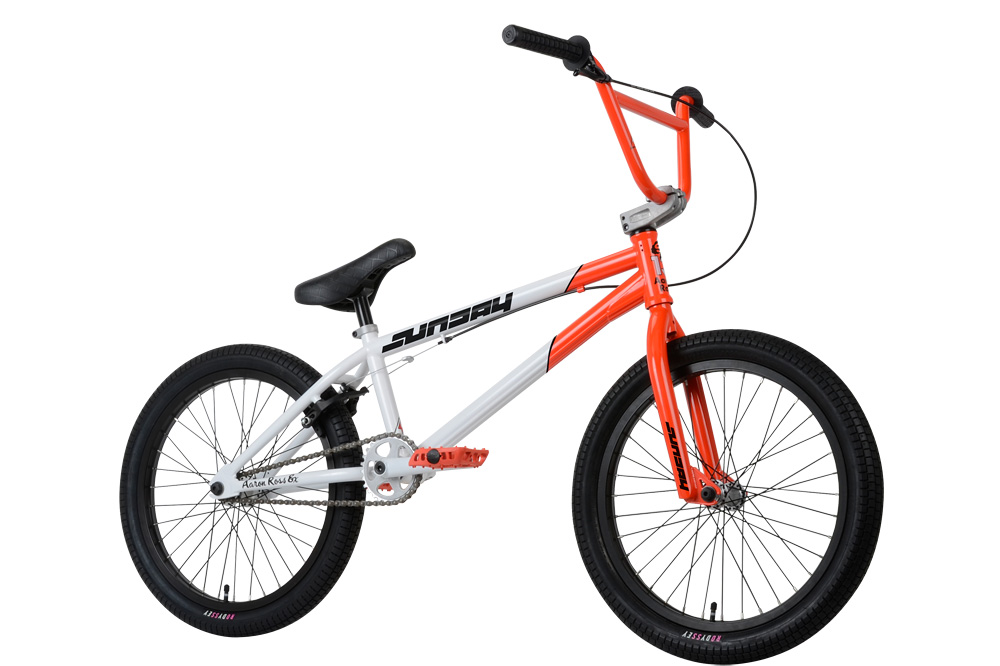

The Aaron Ross EX features a long list of Odyssey products that easily rivals pro-level bikes from other brands. You’ll find Aaron Ross tires and matching Aaron 2 grips on board, along with a high-quality Odyssey Quadrant wheelset, Aaron Ross Principal pivotal seat, a modern frame geometry and a Sunday Freeze top load stem. You also get legendary Sunday engineering, like the dent-resistant wave down tube and a gusset construction that provides you with unparalleled frame durability, without the weight penalty you see on fashion-driven bikes. Sunday designed, Aaron tested and approved.
Improvements over the AM
- 28-9 gear ratio
- Odyssey Linear Quik Slic
- Sunday Sabretooth 6061 aluminum sprocket
- Sealed 3/8" front hub
- Odyssey Quadrant rims
- Odyssey Aaron Ross
- Full chromoly forks with 1-pc steerer tube
- Full chromoly handlebars
- Chromoly Wave DT, HT, Dropouts and EX has chromoly TT and chainstays
Specs

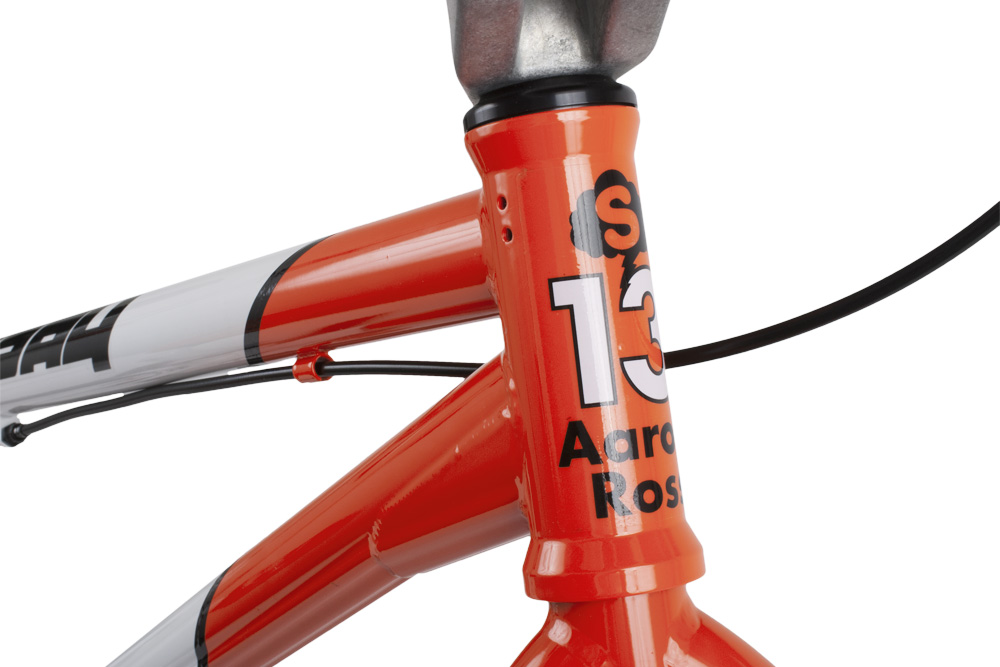

- FRAME: Chromoly HT, TT, Wave DT, Chainstays & Dropouts
- GEOMETRY: 20.75″ TT, 75° HT, 71° ST, 11.5″ BB, 13.375″ CS
- FORK: Full Chromoly, 1PC steerer tube w/ welded pre-load thread insert
- HANDLEBAR: Full Chromoly Triumph XL replica 8.5″ H, 28″ W, 12° backsweep, 1° upsweep

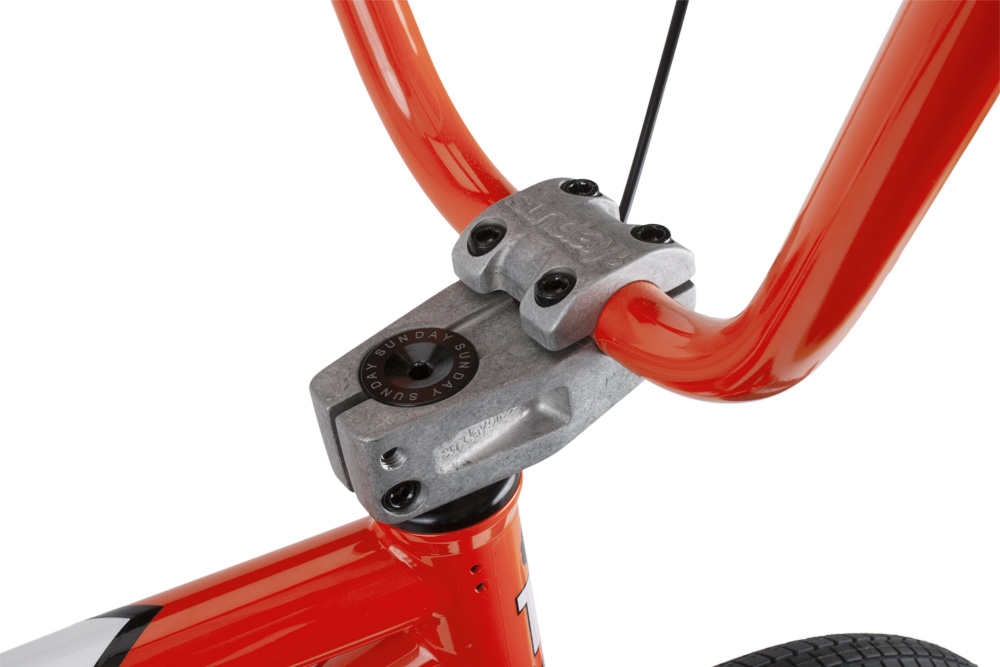

- STEM: Sunday Freeze Top-Load
- HEADSET: Integrated, 1 1/8″

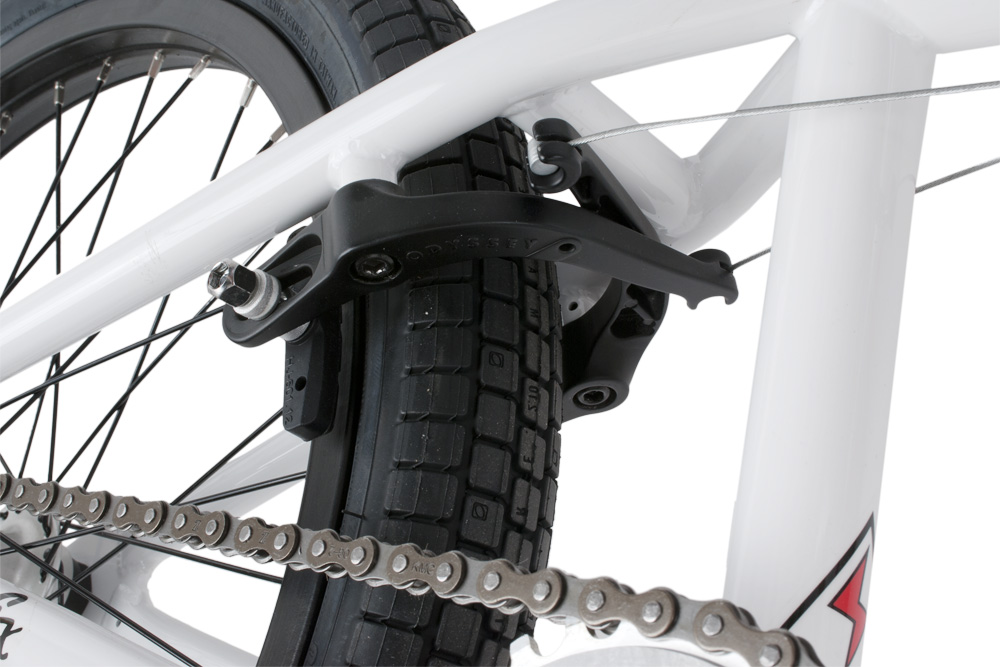

- BRAKE: Odyssey Springfield

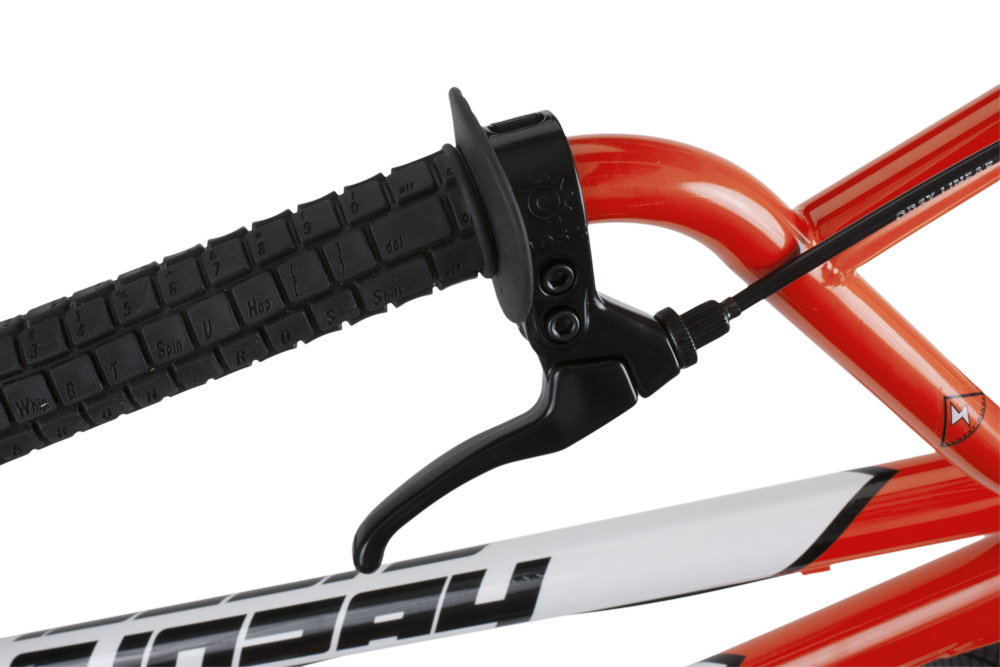

- BRAKE LEVER: Odyssey Springfield
- BRAKE CABLE: Odyssey Linear Quik Slic Medium

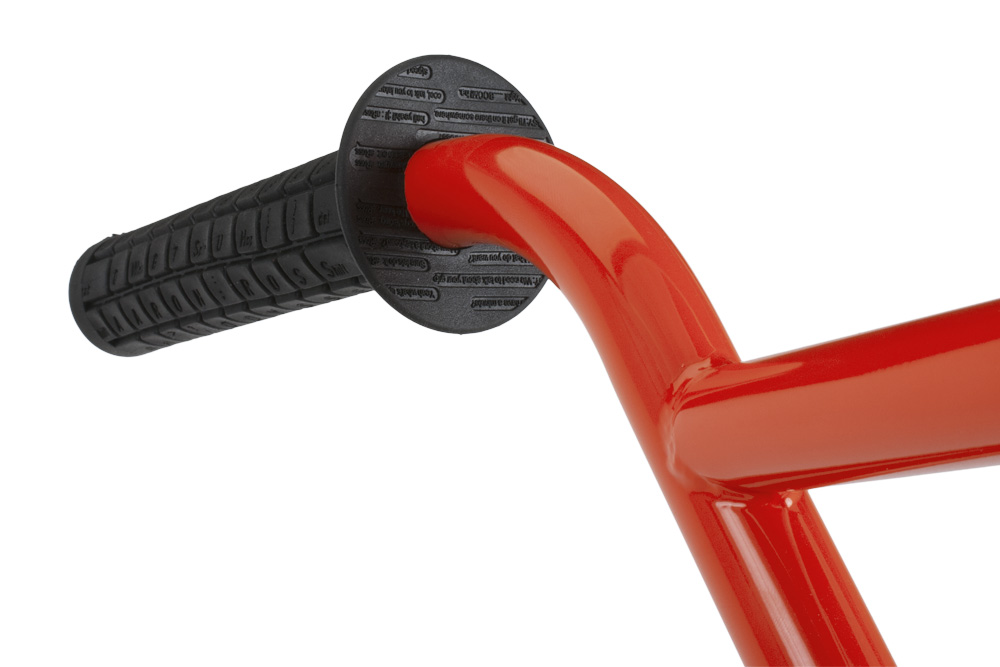

- GRIPS: Odyssey Aaron Ross 2

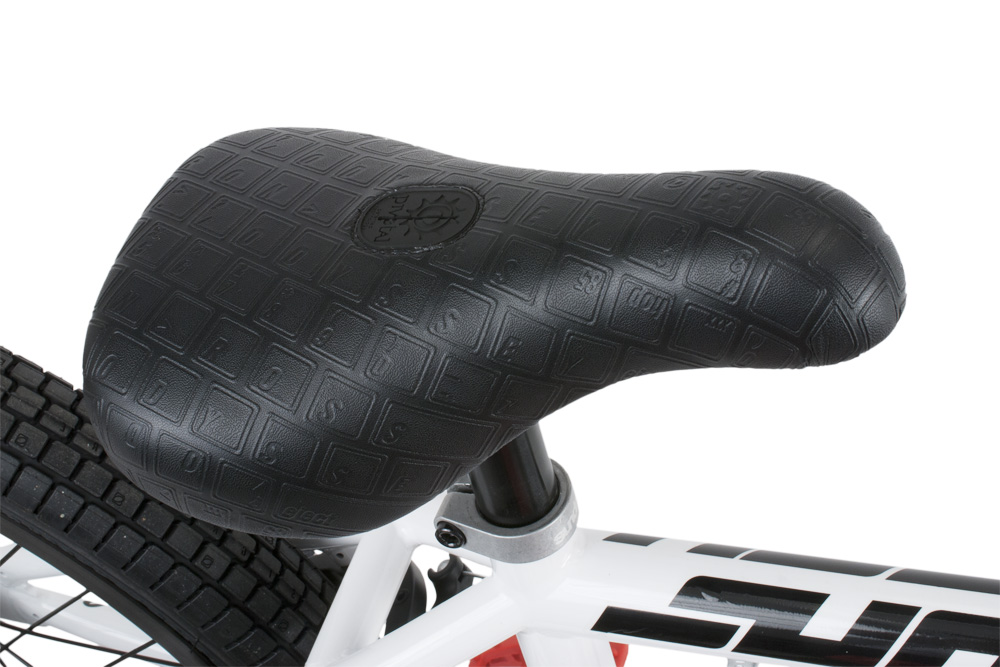

- SEAT: Odyssey Principal Aaron Ross
- SEAT POST: Pivotal
- SEAT CLAMP: Sunday
- SPROCKET: Sunday Sabretooth, 28-T, 6061-T6 Aluminum, CNC
- CRANKS: 3-Piece Tubular Chromoly, 175mm
- BOTTOM BRACKET: 19mm Sealed Mid

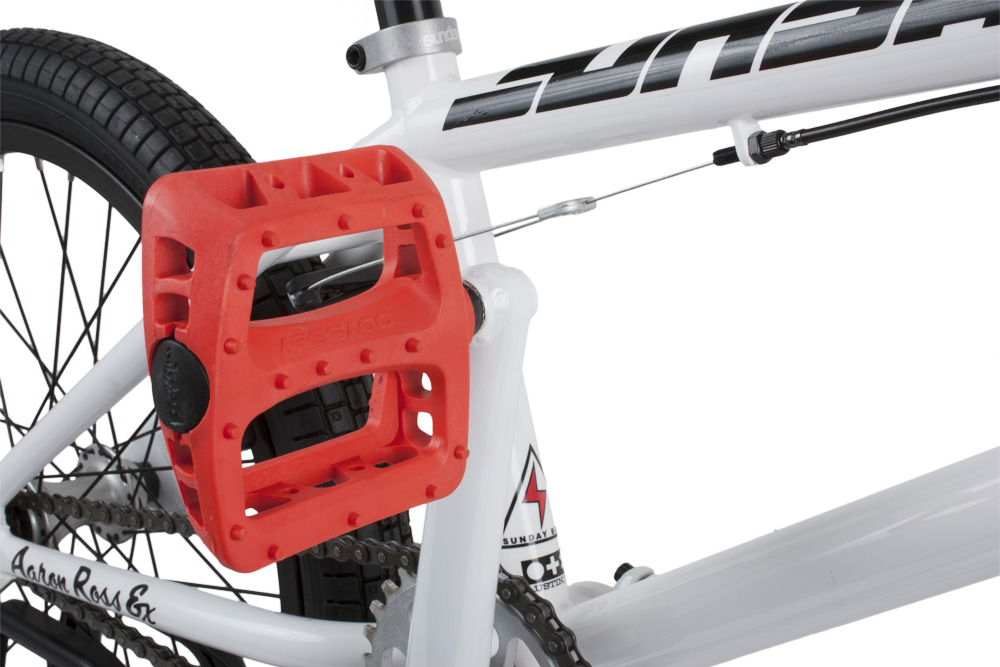

- PEDALS: Odyssey Twisted PC

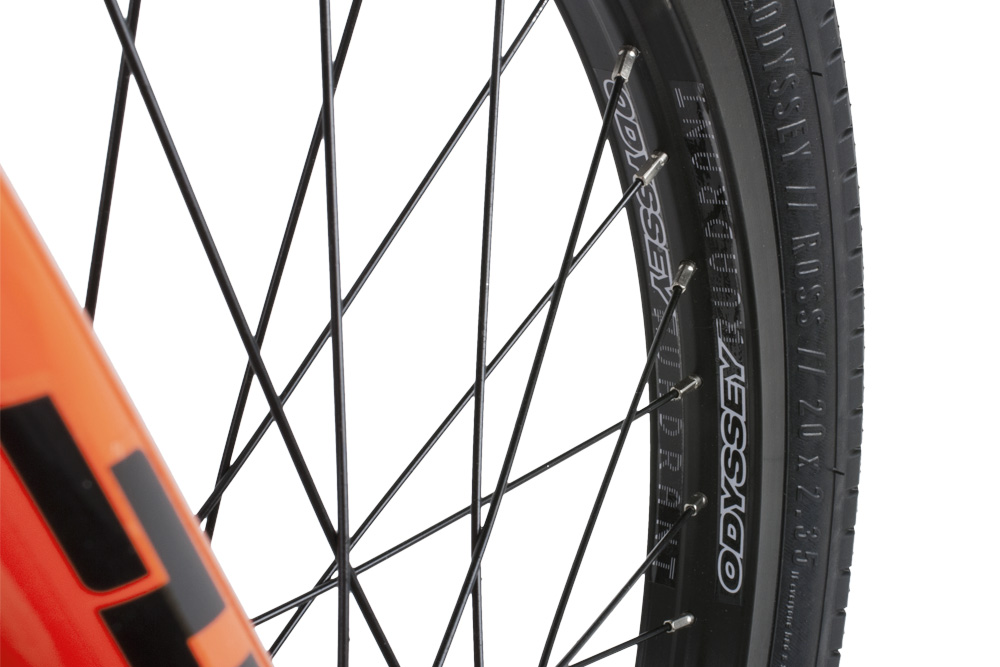

- RIMS: Odyssey Quadrant, 36-H

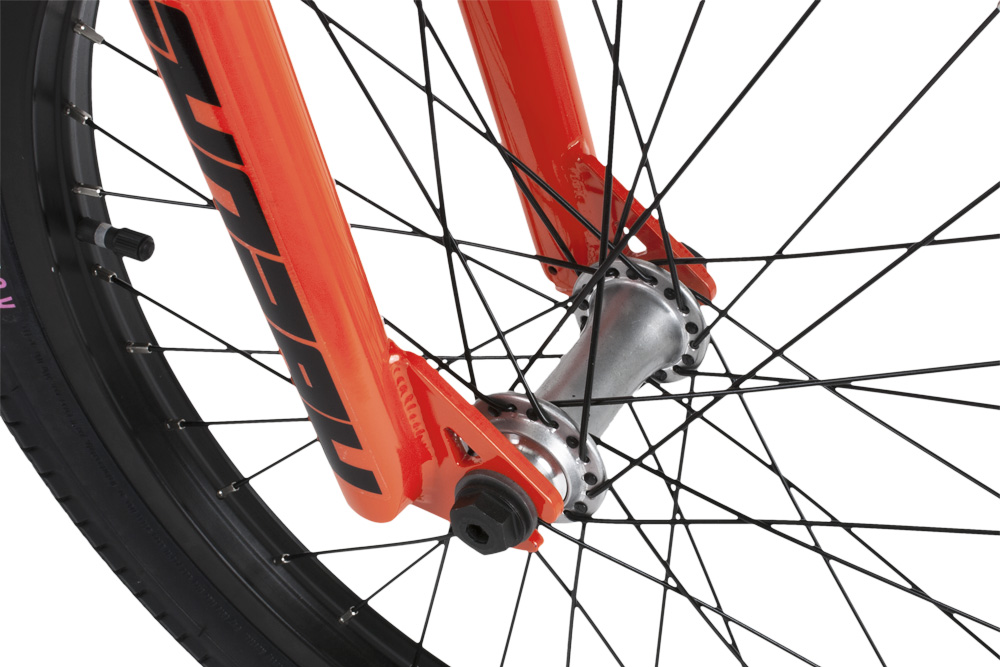

- FRONT HUB: Sealed 3/8″, 36-H, Low Flange with female axle
- REAR HUB: Sealed Cassette, 14mm, 36-H, 9-T with female axle

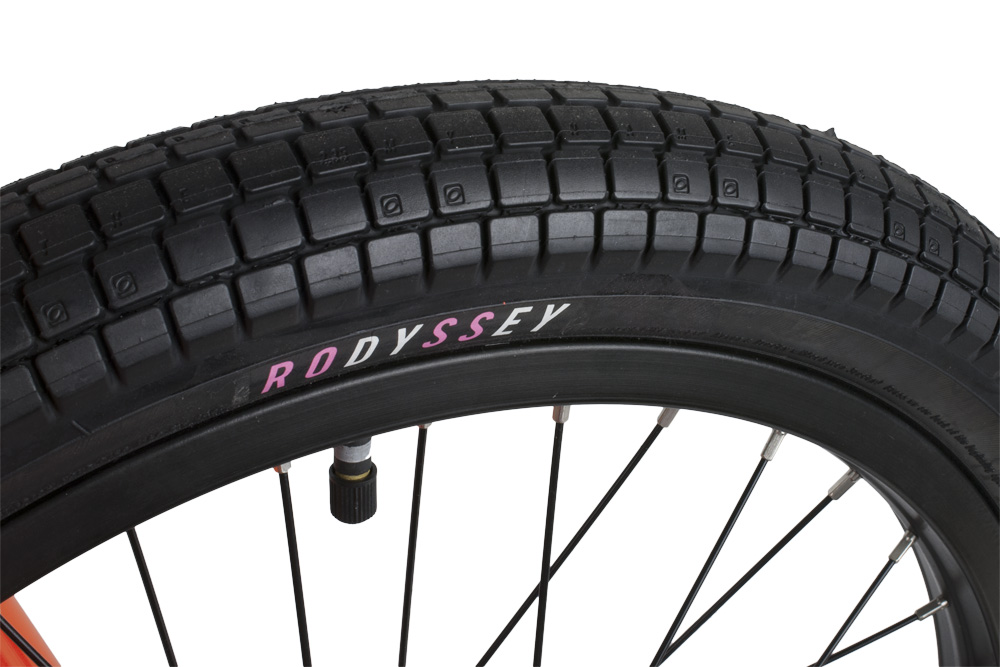

- TIRES: Odyssey Aaron Ross 20″ x 2.35″ front and 20″ x 2.10″ rear
- CHAIN: KMC Z410H
- WEIGHT: 26.2 lbs
