About

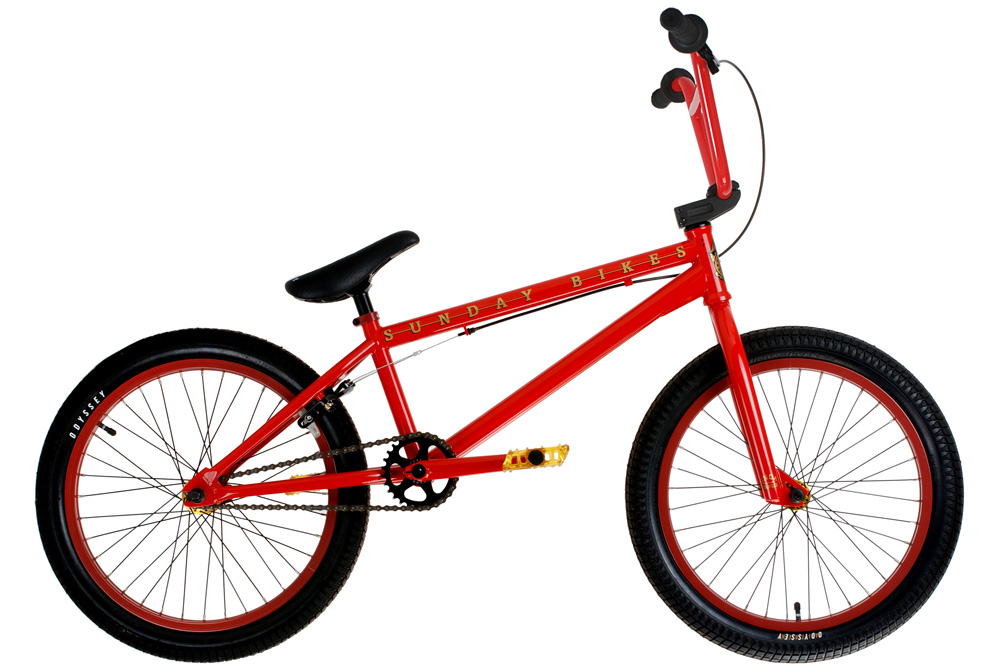

For 2012 we have gone a step further into making our bikes feel like the bikes of the pros. Our EX level of bikes are the first bikes in our line to feature the “pro level gearing” of 28/9. The Gary Young EX also features a tri-moly frame giving you chromoly tubes where you need them most, at the head tube, top tube, down tube, seat stay and drop outs. We opted to use chromoly seat stays as opposed to the more traditional seat tube because the seat stays are an area that need to retain its strength if the rider chooses to grind. Attention to every detail was given to each and every model of the 2012 Sunday completes.

Colors

  • Fire Engine Red/ Gold

Improvements over the AM

  • 27-9 gear ratio
  • Sunday Sabretooth 6061 aluminum sprocket
  • Sealed 3/8" front hub
  • Odyssey Quadrant rims
  • Odyssey Aaron Ross or Aitken tires
  • Full chromoly forks with 1-pc steerer tube
  • Full chromoly handlebars
  • Chromoly Wave DT, HT, Dropouts and EX has chromoly TT and chainstays

Specs

  • FRAME: Chromoly HT, TT, Wave DT, Chainstays & Dropouts
  • GEOMETRY: 20.75″ TT, 75º HT, 71º ST, 11.5″ BB, 13.25″ CS
  • FORK: Full Chromoly w/1PC Steerer Tube & Welded Pre-load Thread Insert
  • HANDLEBAR: Full Chromoly Triumph XL Replica

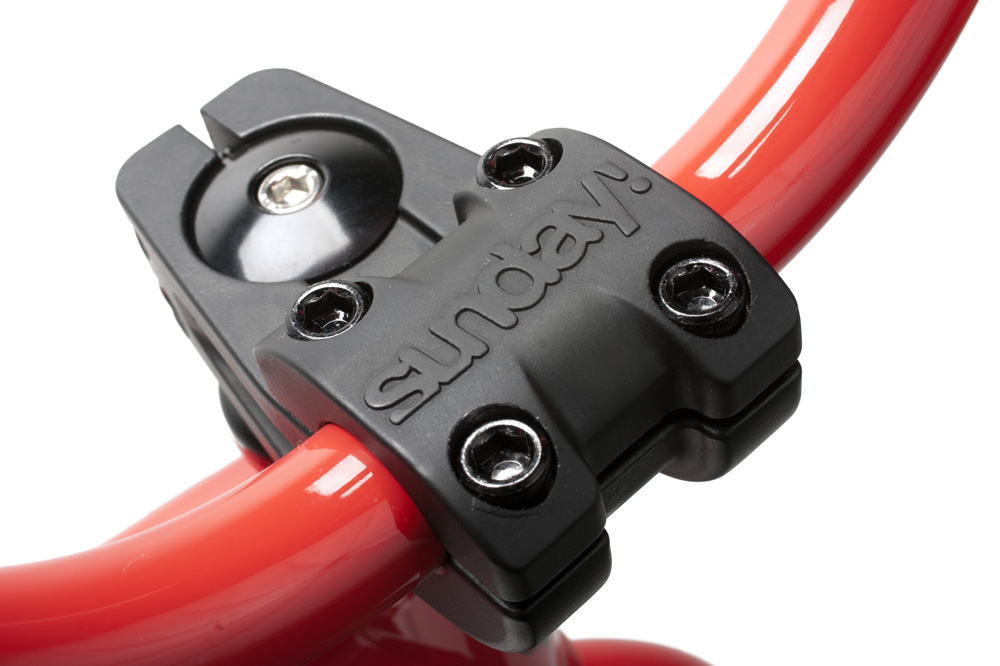

  • STEM: Sunday Freeze Top-Load
  • HEADSET: Integrated, 1 1/8″
  • BRAKE: Rush
  • BRAKE LEVER: Rush Hinged
  • BRAKE CABLE: Odyssey Linear Quik Slic Medium

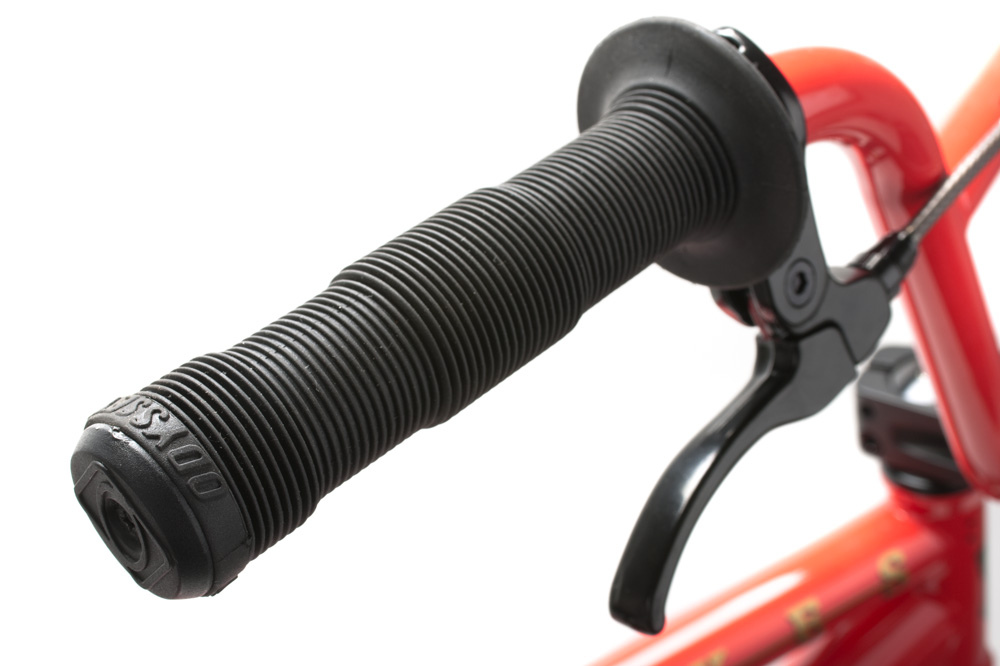

  • GRIPS: Odyssey Gary Young Signature

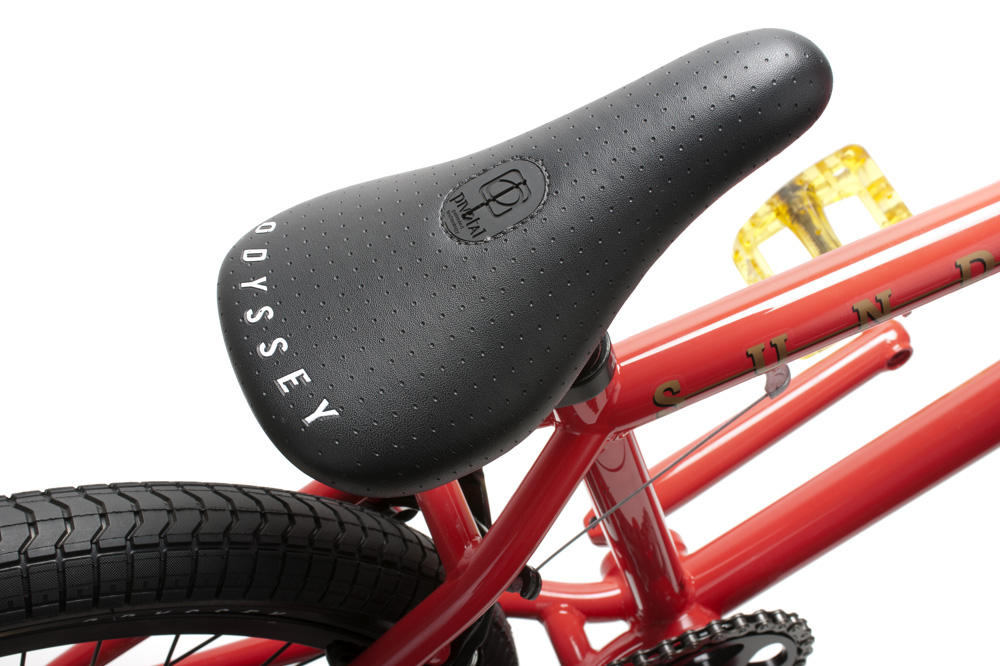

  • SEAT: Odyssey Senior 2, Padded, Pivotal
  • SEAT POST: Pivotal
  • SEAT CLAMP: Sunday
  • SPROCKET: Sunday Sabretooth, 6061-T6 Aluminum, 28-T
  • CRANKS: 3-Piece Tubular Chromoly, 175mm
  • BOTTOM BRACKET: Sealed Mid, 19mm

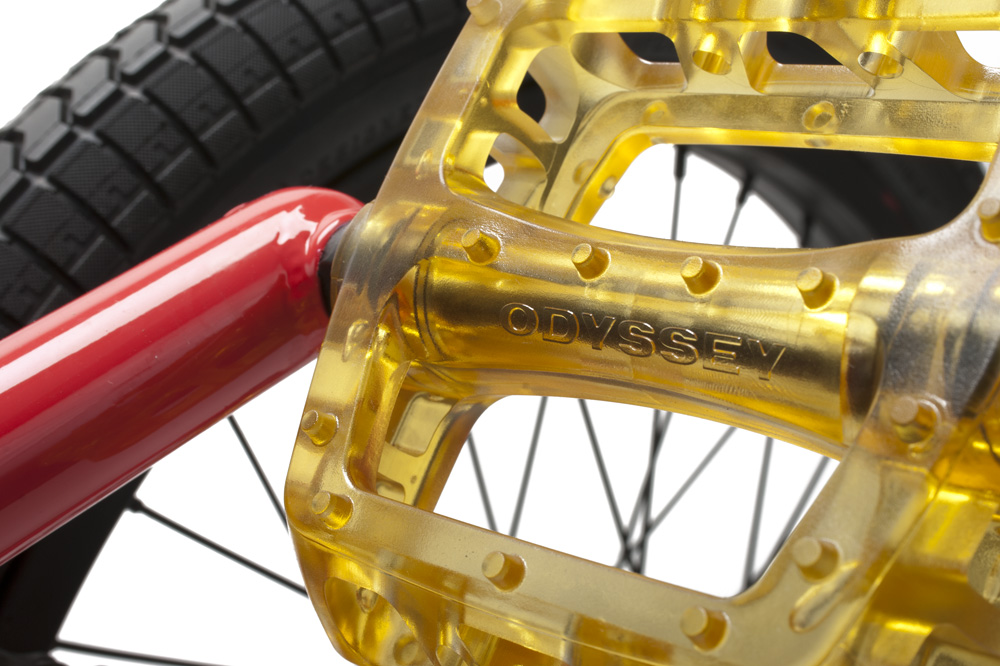

  • PEDALS: Odyssey Twisted PC
  • RIMS: Odyssey Quadrant, 36h
  • FRONT HUB: Sealed, 3/8″, 36h
  • REAR HUB: Sealed Cassette, 14mm, 36h, 9-T
  • TIRES: Odyssey, Aitken Front and Path Rear
  • CHAIN: KMC Z510H
  • WEIGHT: 26 lbs
  • MSRP: $569.99 (USA only)
